DAKE Laboratory Presses

Laboratory Presses
Click image to enlarge

Laboratory Presses CAD image

LABORATORY PRESSES
944225-1 44-225 25-ton Laboratory, 2 Platens (9" x 9") 110v Only
944226-1 44-226 25-ton Laboratory, 2 Platens (9" x 12") 110v Only
944225-2 44-225 25-ton Laboratory, 2 Platens (9" x 9") 220v Only
944226-2 44-226 25-ton Laboratory, 2 Platens (9" x 12") 220v Only
944225 44-225 25-ton Laboratory, 2 Platens (9" x 9") 110v or 220v
944226 44-226 25-ton Laboratory, 2 Platens (9" x 12") 110v or 220v
944001 44-001A Pedestal
944250-2 44-250 50-ton Laboratory, 2 Platens (12 1/2" x 12 1/2") 220v / 3 Phase
944251-2 44-251 50-ton Laboratory, 2 Platens (12 1/2" x 19") 220v / 3 Phase
944250-4 44-250 50-ton Laboratory, 2 Platens (12 1/2" x 12 1/2") 440v / 3 Phase
944251-4 44-251 50-ton Laboratory, 2 Platens (12 1/2" x 19") 220v/440v 3 Phase
944250 44-250 50-ton Laboratory, 2 Platens (12 1/2" x 12 1/2") 220v/440v 3 Phase
944251 44-251 50-ton Laboratory, 2 Platens (12 1/2" x 19") 220v/440v 3 Phase
944001 44-001A Pedestal
944275-2 44-275 75-ton Laboratory, 2 Platens (19" x 19") 220v / 3 Phase
944275-4 44-275 75-ton Laboratory, 2 Platens (19" x 19") 440v / 3 Phase
944275 44-275 75-ton Laboratory, 2 Platens (19" x 19") 220v/440v 3 Phase
944003 44-003 Pedestal



For compression molding, laminating, testing and more.

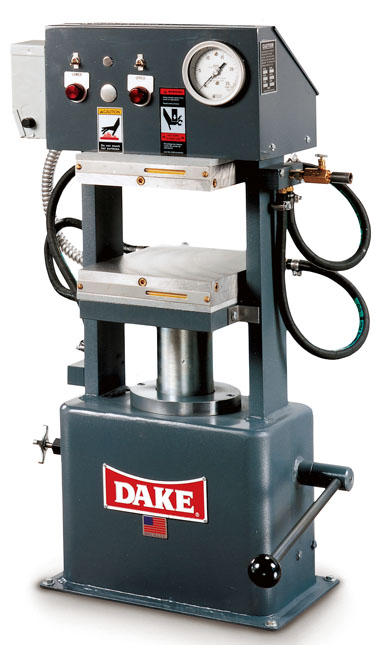

Model 44-225 shown.

Features

  • Electric platens: The self-leveling, electrically cooled, precision ground steel platens are pre-wired into the control panel. Heating elements are replaceable.
  • Hydraulic system: A unique pump design provides a rapid advance of the ram utilizing the high volume-low pressure portion of the pump. When the down stroke of the pump lever is used, the pump automatically converts to the high pressure-low volume output providing accurate control and easy operation. The carefully -constructed hydraulic system enables the press to hold pressure for extra long periods of time. The release valve on the side of the press enables the operator to adjust the pressure accurately as well as accomplish gradual decompression or fast opening of the press.
  • Control panel: A conveniently-located panel at the top of the press is isolated from the press and is cooled by an air space between the housing and the upper platen. All electricals are mounted on a common plaque for easy servicing.
  • Precise temperature control: Each platen has its own complete set of controls including adjustable thermoswitch, built-in thermometer, power switch and pilot light. Temperatures are accurately controlled from 100Ëö to 600ËöF.
  • Two position ram: A removable adaptor is placed between the self-leveling platen and the ram. By removing the adaptor, a greater daylight dimension is available.
Specifications
model
44-225
44-226
tonnage 25 25
maximum temp. FËö 600 600
watts per press
2,900
3,600
voltage single phase
120*
120*
amps 25 30
number of openings 1 1
A stroke 5 5
BxC platens
9x9
9x12
D daylight between each platen with adapter 5 5
E daylight between each platen w/o adapter
10
10
FxG base dimensions
16x11
16x11
H overall height 36 36
weight 425 450





For compression molding, laminating, testing and more.
Model 44-225 shown.

Features

  • Electric platens: The self-leveling, electrically cooled, precision ground steel platens are pre-wired into the control panel. Heating elements are replaceable.
  • Hydraulic system: A unique pump design provides a rapid advance of the ram utilizing the high volume-low pressure portion of the pump. When the down stroke of the pump lever is used, the pump automatically converts to the high pressure-low volume output providing accurate control and easy operation. The carefully -constructed hydraulic system enables the press to hold pressure for extra long periods of time. The release valve on the side of the press enables the operator to adjust the pressure accurately as well as accomplish gradual decompression or fast opening of the press.
  • Control panel: A conveniently-located panel at the top of the press is isolated from the press and is cooled by an air space between the housing and the upper platen. All electricals are mounted on a common plaque for easy servicing.
  • Precise temperature control: Each platen has its own complete set of controls including adjustable thermoswitch, built-in thermometer, power switch and pilot light. Temperatures are accurately controlled from 100Ëö to 600ËöF.
  • Two position ram: A removable adaptor is placed between the self-leveling platen and the ram. By removing the adaptor, a greater daylight dimension is available.
Specifications
model
44-250
44-251
tonnage 50 50
maximum temp. FËö 600 600
watts per press
4,800
7,200
voltage single phase
240**
240**
amps 20 30
number of openings 1 1
A stroke 6 6
BxC platens
12-1/2 x 12-1/2
12-1/2 x 19
D daylight between each platen with adapter 6 6
E daylight between each platen w/o adapter
10
10
FxG base dimensions
18x16
18x16
H overall height 39 39
weight 825 925

For compression molding, laminating, testing and more.
Model 44-225 shown.

Features

  • Electric platens: The self-leveling, electrically cooled, precision ground steel platens are pre-wired into the control panel. Heating elements are replaceable.
  • Hydraulic system: A unique pump design provides a rapid advance of the ram utilizing the high volume-low pressure portion of the pump. When the down stroke of the pump lever is used, the pump automatically converts to the high pressure-low volume output providing accurate control and easy operation. The carefully -constructed hydraulic system enables the press to hold pressure for extra long periods of time. The release valve on the side of the press enables the operator to adjust the pressure accurately as well as accomplish gradual decompression or fast opening of the press.
  • Control panel: A conveniently-located panel at the top of the press is isolated from the press and is cooled by an air space between the housing and the upper platen. All electricals are mounted on a common plaque for easy servicing.
  • Precise temperature control: Each platen has its own complete set of controls including adjustable thermoswitch, built-in thermometer, power switch and pilot light. Temperatures are accurately controlled from 100Ëö to 600ËöF.
  • Two position ram: A removable adaptor is placed between the self-leveling platen and the ram. By removing the adaptor, a greater daylight dimension is available.
Specifications
model
44-275
tonnage 75
maximum temp. FËö 600
watts per press
10,800
voltage single phase
240*
amps 26
number of openings 1
A stroke 6
BxC platens
19x19
D daylight between each platen with adapter 6
E daylight between each platen w/o adapter
12
FxG base dimensions
26x21
H overall height 51
weight 1,900

944225-1
DAKE MODEL 44-225 - 25-TON LABORATORY PRESS, 2 PLATENS (9 X 9)
Mfg. item #: 944225-1
DAKE944225-1
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

365
944226-1
DAKE MODEL 44-226 - 25-TON LABORATORY PRESS, 2 PLATENS (9 X 12)
Mfg. item #: 944226-1
DAKE944226-1
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

365
944225-2
DAKE MODEL 44-225 - 25-TON LABORATORY PRESS, 2 PLATENS (9 X 9)
Mfg. item #: 944225-2
DAKE944225-2
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

365
944226-2
DAKE MODEL 44-226 - 25-TON LABORATORY PRESS, 2 PLATENS (9 X 12)
Mfg. item #: 944226-2
DAKE944226-2
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

365
944225
MODEL 44-225 - 25-TON LABORATORY, 2
Mfg. item #: 944225
DAKE944225
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

845
944226
MODEL 44-226 - 25-TON LABORATORY, 2
Mfg. item #: 944226
DAKE944226
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

831
944001
DAKE MODEL 44-001A - PEDESTAL STAND
Mfg. item #: 944001
DAKE944001
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

365
944250-2
DAKE MODEL 44-250 - 50-TON LABORATORY PRESS, 2 PLATENS (12 1/2 X 12 1/2)
Mfg. item #: 944250-2
DAKE944250-2
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

365
944251-2
DAKE MODEL 44-251 - 50-TON LABORATORY PRESS, 2 PLATENS (12 1/2 X 19)
Mfg. item #: 944251-2
DAKE944251-2
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

365
944250-4
DAKE MODEL 44-250 - 50-TON LABORATORY PRESS, 2 PLATENS (12 1/2 X 12 1/2)
Mfg. item #: 944250-4
DAKE944250-4
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

365
944251-4
DAKE MODEL 44-251 - 50-TON LABORATORY PRESS, 2 PLATENS (12 1/2 X 19)
Mfg. item #: 944251-4
DAKE944251-4
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

365
944250
MODEL 44-250 - 50-TON LABORATORY, 2
Mfg. item #: 944250
DAKE944250
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

831
944251
MODEL 44-251 - 50-TON LABORATORY, 2
Mfg. item #: 944251
DAKE944251
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

831
944275-2
DAKE MODEL 44-275 - 75-TON LABORATORY PRESS, 2 PLATENS (19 X 19)
Mfg. item #: 944275-2
DAKE944275-2
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

365
944275-4
DAKE MODEL 44-275 - 75-TON LABORATORY PRESS, 2 PLATENS (19 X 19)
Mfg. item #: 944275-4
DAKE944275-4
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

365
944275
MODEL 44-275 - 75-TON LABORATORY, 2
Mfg. item #: 944275
DAKE944275
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

831
944003
DAKE MODEL 44-003 - PEDESTAL STAND
Mfg. item #: 944003
DAKE944003
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

365
