EWT Carbide Inserts

EASY Genuine EWT Replacement Carbide
4400 Ci0 Carbide Cutter - Round - Easy Finishers - Full & Pro
  - Genuine EWT Replacement Carbide
1500 Ci1-Sq Carbide Cutter - Square - Easy Roughers - Full & Pro
  - Genuine EWT Replacement Carbide
1400 Ci1-R4 Carbide Cutter - 4" Radius - Easy Roughers - Full & Pro
  - Genuine EWT Replacement Carbide
1600 Ci1-R2 Carbide Cutter - 2" Radius - Easy Roughers - Full & Pro
  - Genuine EWT Replacement Carbide
2500 Ci2-Sq Carbide Cutter - Square - Easy Roughers - Mini & Mid
  - Genuine EWT Replacement Carbide
2600 Ci2-R2 Carbide Cutter - 2" Radius - Easy Roughers - Mini & Mid
  - Genuine EWT Replacement Carbide
6400 Ci3 Carbide Cutter - Round - Easy Finishers - Mini & Mid OR Easy Hollowers - Full & Pro
   - Genuine EWT Replacement Carbide
7400 Ci4 Carbide Cutter - Diamond Shape - Easy Detailers - All sizes
  - Genuine EWT Replacement Carbide
6604 Ci5 Carbide Cutter - Round - Easy Detailers - All sizes
  - Genuine EWT Replacement Carbide
PI1 PI1 - Parting Cutter - 1/8" wide
  - Genuine EWT Replacement Carbide





Easy Turning Tools by Easy Wood Tools

rougher-2

ci1_w_deflector_sm

Easy Rougher - The Next Step in Woodturning

ci1_detail2The Easy Rougher is a carbide cutter woodturning tool that addresses fatigue, safety, and efficiency like no other type of tool on the market. Designed to be kept flat on the tool rest and level to the floor, the Easy Rougher will effortlessly hog away massive amounts of material for any woodturning process without the need for sharpening. The tool design provides support directly beneath the cutting edge transferring the cutting pressure downward allowing the lathe to "take the pounding" that you would normally suffer through when using a conventional bowl gouge for roughing. No more ‘white knuckling’ a bowl gouge.

  • Cuts left, right and straight in without changing approach angle
  • Truly deeper cuts – up to 1" off the diameter in one pass with the Full Size Rougher.
  • Requires very little physical strength or exertion
  • Your feet and hips stay in nearly the same position for the blank roughing process.
  • Very minimal handle bouncing on irregular shaped blanks
  • Reduced kick-back or sucking into work piece
  • Available Chip Deflector keeps most projectiles away from the face and neck
  • No intimidating cutting angles to learn and remember
  • No bevels to ride
  • No fear of a dangerous catch

ci1_detail23

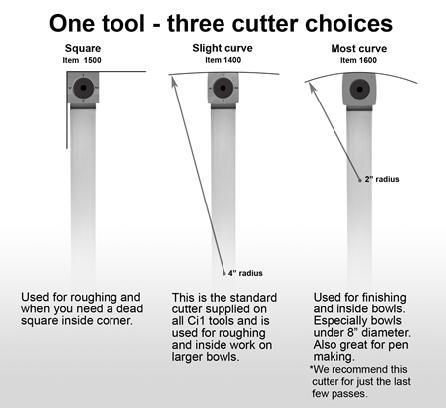

The Full Size Rougher accepts 3 different cutters:
Ci1-R2, Ci1-R4, or the Ci1-Square.

The Mini and Mid-Size Easy Rougher accepts 2 different cutters:
Ci2-R2 or the Ci2-Square.

ci1_detail1

The crowned, R2 and R4, cutters excel at spindle roughing and finishing and working inside bowls.
Choose the square cutter for cutting square shoulders such as tenons on bowls and spindle work.
For maximum efficiency, have a tool for each cutter. The Easy Rougher tool bars are CNC machined from solid stainless steel bar stock.

Replacement carbide cutter number is engraved right on the tool bar.
Available in four sizes – see purchase page for all products, sizes and accessories.

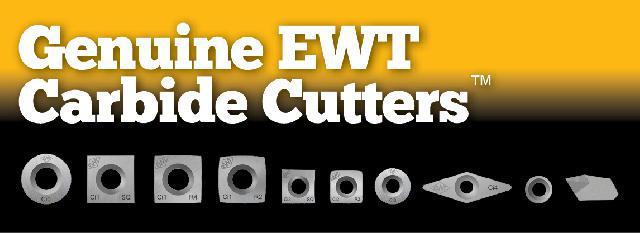

Carbide Cutters

These carbide cutters have four sharp sides.
For the Full Size Rougher:

3tips

































For the Mini and Mid Size Rougher:
Ci2-Square and Ci2-R2 Genuine EWT Carbide Cutters are available.

Replacement Carbide Cutter Number is engraved right on the tool bar.

Lexan Chip Deflector

deflector

The Easy Rougher is capable of plunge cuts similar to using a giant parting tool. This type of cut sends massive amounts of material straight back at the operator. You will not regret having this deflector in place for those cuts.

  • Not a substitute for proper eye protection.
  • Deflector was designed to be looked over rather than through.
  • The Easy Rougher tools produce large volumes of shavings like no other tool you have ever experienced.
  • Available in two sizes - See purchase page for available sizes.

finisher-2

Easy Finisher - Yet Another Innovation in Woodturning

With another step forward in woodturning innovation, Easy Wood Tools now offers you a tool to take up where the Easy Rougher leaves off. The Easy Finisher has a round carbide cutter perfect for doing the inside work on smaller bowls and for larger coves on spindle work. Our carbide inserts are made in the USA and we are pleased to offer you a tool that is 100% "made in America."

"If you own one of our existing Easy Roughers, you well know by now that we deliver even more than we advertise, as hard as is was for you to believe before your first purchase. I assure you the productivity of this tool will exceed your highest expectations. You just can not predict the possibilities or joy this tool will provide you. In testing the prototypes for this new design, I found myself creating forms that were never even on my list to try because the dangers and complications of existing tools were just not worth the trouble." ~Craig Jackson, Founder

Like the other Easy tools, the Easy Finishers are designed to be used with the tool rest set so that when the tool is held level the top of the cutter is on center. Then just keep it level to the floor and flat on the tool rest for all types of cuts... it does not get any easier than that. There are no complicated approach angles, or bevels to ride. The design of this tool allows the Easy Finisher to effortlessly cut from the center of a bowl out to the rim OR from the rim to the center! All without changing any angles whatsoever. You just stand in one spot and cut coming and going until you get to the shape you want.

The Easy Finisher utilizes the same carbide cutter technology as the Easy Rougher that reduces strain and fatigue, improves productivity, and virtually eliminates sharpening. It comes loaded with one round cutter and when it gets dull, you just rotate the cutter for a fresh cut. Please note: The round cutters are not interchangeable with the carbide cutters on the Easy Rougher tool bars.

When the cutter eventually gets dull, just loosen the retaining screw and rotate cutter about 1/4 of a turn, then re-tighten the screw.

We promise this tool will open up a whole new level of design possibilities for your craft and it will exceed your expectations. If not, return for a complete refund.

Replacement carbide cutter number is engraved right on the tool bar.

Available in four sizes - Mini, Mid-Size, Full-Size and Pro. See purchase page for all products, sizes and accessories.



detailer-2

Easy Detailer

The Easy Detailer tools really pick up where other tools leave off and provide another level of woodturning creativity as the unique diamond cutter shape fits in tight places where the cutters on the other tools will just not fit.

These tools were designed for the primary purpose of doing the small intricate work and cutting final details on your projects such as small coves and beads on both spindle and bowl work. They are also very handy for cutting chuck tenons and making inside reverse angle cuts for inside chucking bowls with dovetail jaws. You may find they work well for hogging your green wood projects too.

The Easy Detailers are engineered to cut going straight in employing just the nose of the tool.

The Easy Detailer tools are engineered with a reduced relief angle to the long cuttings edges making the long edges less aggressive when held in contact with the wood as the nose of the tool is cutting. In use, the long edge is intended to perform as a "control surface" and serve to be in contact with the wood just behind the cut; much like a bevel is being rubbed.

For safety reasons, avoid plunging the tool so deep into the work at once to the depth you would have both sides of the cutter in contact with the wood too greatly at the same time. This could cause too much force at once and lead to binding of the tool in the groove.

Each diamond-shaped Easy Detailer cutter is engineered to fit all size Detailer tools in our current product line. When the cutter eventually dulls, just loosen the retaining screw and rotate cutter, then re-tighten the screw.

Replacement carbide cutter number is engraved right on the tool bar.
Available in four sizes - see purchase page for all products, sizes and accessories.

Easy Hollowers

Best tool for under-cutting hollow forms

The Easy Hollower was designed to offer a revolutionary new approach to turning hollow forms. These Patent Pending tools allow any skill level to achieve professional results for hollowing work with minimum effort and worry.

  • Choose a Hollower for undercutting the rim of hollow forms
  • Utilizes our proven round carbide cutters
  • The True Curve Neck is designed to access the most difficult hollow form shapes
  • Simply use flat and level for all cuts
  • The proprietary Super Wide Tool Bar provides stable tool rest contact and offers support in line with the cutting edge eliminating all rotational forces

Replacement carbide cutter number is engraved right on the tool bar.
Available in four sizes - see purchase page for all products, sizes and accessories.

Technical Info

The Hollower tools are 100% CNC machined on all surfaces, except the bottom, from solid stainless steel plate (not bent round bar).

hollowing tools



easy hollowing tools

Parting

When you're ready to part your work from your stock, reach for our Easy Parting Tool! Its safer, steadier, and like all our Easy Wood Tools, has a replaceable carbide cutter.

Our 2nd generation Easy Parting Tool cuts clean, provides precise and stable control, with a flexible approach for side cutting and undercutting techniques. This tool comes with a replaceable stainless steel cutter blade that contains a permanent mounted Negative Rake Carbide Cutter for smooth, clean parting through all materials, with no sharpening required. The improved reach of this tool allows for bigger projects up to 5 inch diameter, while still offering stable control.

Handles are one-of-a-kind grained American Maple with a copper ferrule that gives strength and comes with an installed replaceable Negative Rake Carbide Cutter Blade and includes a 5/32 inch standard hex key that makes changing the cutter blade quick and easy.

Negative Rake Cutter Blade is engraved with corresponding replacement part number, so its easy to know the item when it's time to replace!  ​

Parting Tool Come with a Negative Rake Carbide Cutter Blade:

  • Pi160 replacement NR Cutter Blade

The Pi160 replacement NR Cutter Blade will only work with the 2nd Generation 1/8 inch Parting Tool. The Original 1/8 inch Parting Tool accepts the Pi1 replacement standard cutter.

2nd generation Easy Parting Tool

Pi160 replacement Negative Rake Carbide Cutter Blade

Features:

  • Handle: 14 inch
  • Cut Width: 1/8 inch
  • Blade Length: 2 1/2 inch
  • Maximum Part Off Diameter: 5 inch
  • Overall Length: 19 inch
EASY NEW! Parting Tool
PT150 NEW ! 1/8" Mid Size Easy Parting Tools
PI160 PI1 - Parting Cutter - 1/8" wide   - Genuine EWT Replacement Carbide

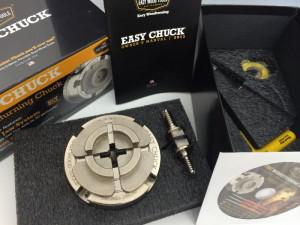

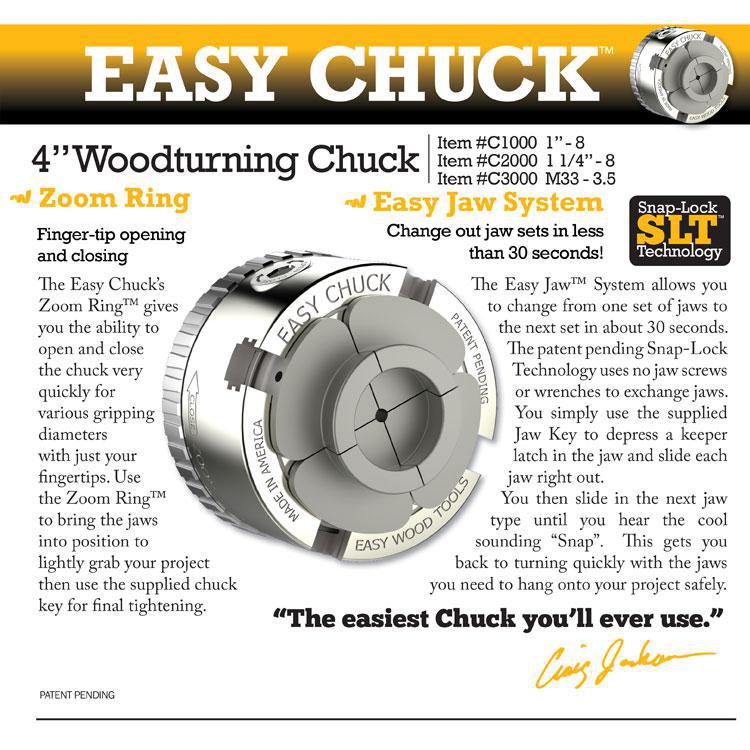

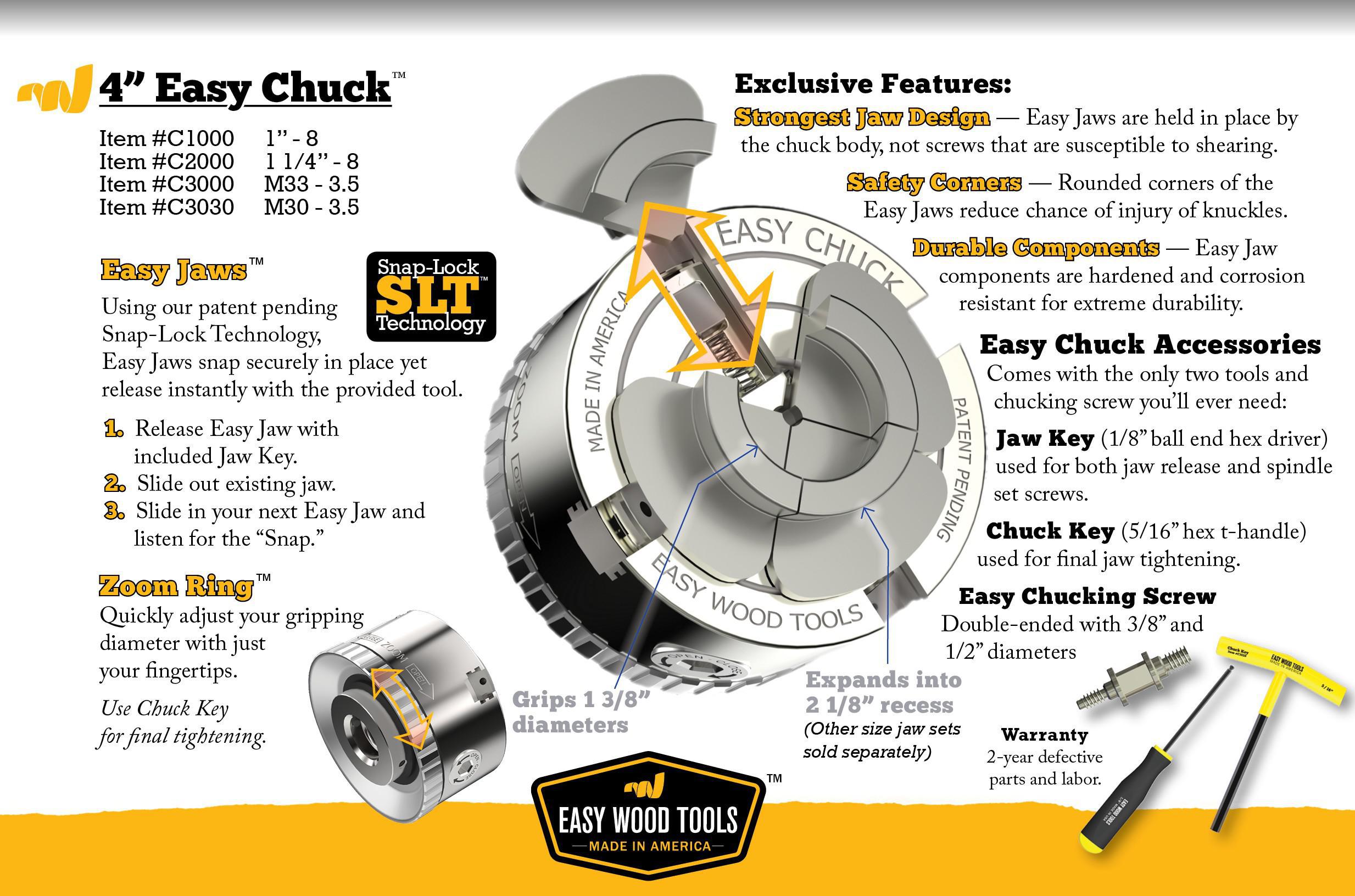

Introducing the new Easy Chuck

easy-chuck-content-one

Kurt Hertzog loves the new Easy Chuck

The most recent addition to the woodturning chuck market comes from the Easy Wood Tools Company. Most widely known for their families of carbide cutter woodturning tools, they also produce faceplates and smocks for the woodturning community. The Easy Chuck is the first product from Easy Wood Tools in the woodturning chuck arena.
From first appearances, the Easy Wood Tools Easy Chuck body looks very similar to the mid sized body chucks available from many other manufacturers located throughout the world. The EWT chuck is packaged nicely in a sturdy high gloss black box adorned with the EWT logos and colors. It looks a bit different as soon as you remove the chuck from the box. The chuck has a different colored ring that runs around the back. In addition to the chuck, the box contains the instruction manual, T-handle chuck wrench, a handled ball end key wrench, and a bag with a spindle washer, replacement springs and grub screws.

easy chuck Easy Chuck Includes:



1 3/8 in Easy Dovetail Jaws

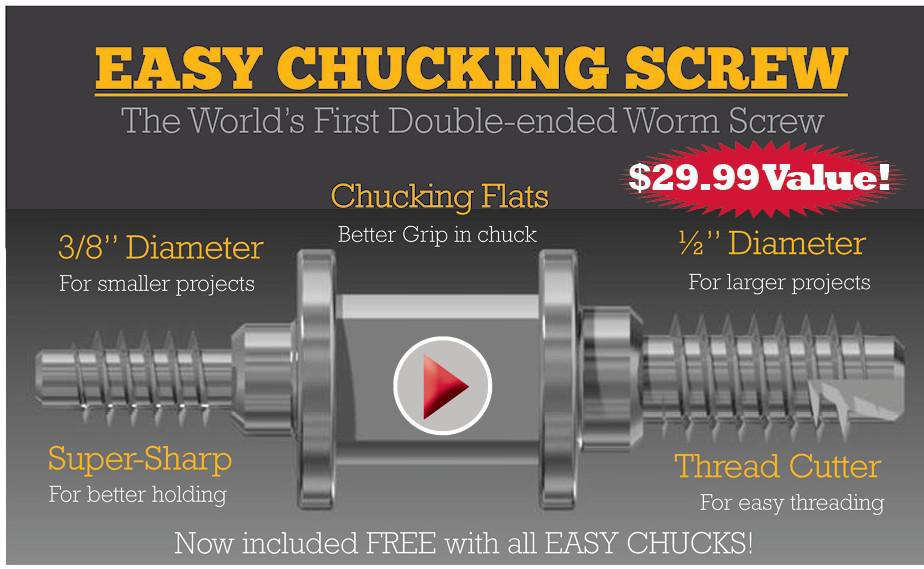

Easy Chucking Screw

Chuck Key - 5/16" Hex T-Handle

Jaw Key - 1/8" Hex Ball Driver

Spindle Washer

Spare Hub Set Screws

Spare Master Jaw Springs

Owner's manual

The Woodturning System DVD

chucking screw


more information

accessories

Lexan® Chip Deflector

The Easy Rougher is capable of plunge cuts similar to using a giant parting tool. This type of cut sends massive amounts of material straight back at the operator. You will not regret having this deflector in place for those cuts.

  • Not a substitute for proper eye protection.
  • Deflector was designed to be looked over rather than through.
  • The Easy Rougher tools produce large volumes of shavings like no other tool you have ever experienced.
  • Available in two sizes - See purchase page for available sizes.



Chip Deflectors
1700 1/2 inch Lexan Chip Deflector (Fits Full size and Pro 1/2 inch tools)
2700 3/8 Lexan Chip Deflector (Fits Easy Start, Mini, and Mid size 3/8 inch tools)

face plates



Shirts and smocks

4400
CI0 CARBIDE CUTTER - ROUND
Mfg. item #: 4400
EASY4400
$9.95 Shipping & Handling on this item or Free Shipping on Easy Wood orders Over $150.001043
$17.99

1080
1500
CI1-SQ CARBIDE CUTTER - SQUARE
Mfg. item #: 1500
EASY1500
$9.95 Shipping & Handling on this item or Free Shipping on Easy Wood orders Over $150.001043
$15.99

1080
1400
CI1-R4 CARBIDE CUTTER - 4 RADIUS
Mfg. item #: 1400
EASY1400
$9.95 Shipping & Handling on this item or Free Shipping on Easy Wood orders Over $150.001043
$15.99

1080
1600
CI1-R2 CARBIDE CUTTER - 2 RADIUS
Mfg. item #: 1600
EASY1600
$9.95 Shipping & Handling on this item or Free Shipping on Easy Wood orders Over $150.001043
$15.99

1080
2500
CI2-SQ CARBIDE CUTTER - SQUARE
Mfg. item #: 2500
EASY2500
$9.95 Shipping & Handling on this item or Free Shipping on Easy Wood orders Over $150.001043
$13.99

1080
2600
CI2-R2 CARBIDE CUTTER - 2 RADIUS
Mfg. item #: 2600
EASY2600
$9.95 Shipping & Handling on this item or Free Shipping on Easy Wood orders Over $150.001043
$14.99

1080
6400
CI3 CARBIDE CUTTER - ROUND
Mfg. item #: 6400
EASY6400
$9.95 Shipping & Handling on this item or Free Shipping on Easy Wood orders Over $150.001043
$16.99

1080
7400
CI4 CARBIDE CUTTER - DIAMOND - ALL SIZES (EXCEPT THE MID-SIZE MICRO DETAILER
Mfg. item #: 7400
EASY7400
$9.95 Shipping & Handling on this item or Free Shipping on Easy Wood orders Over $150.001043
$18.99

1080
6604
CI5 CARBIDE CUTTER - ROUND
Mfg. item #: 6604
EASY6604
$9.95 Shipping & Handling on this item or Free Shipping on Easy Wood orders Over $150.001043
$16.99

1080
PI1
PI1 - PARTING CUTTER - 1/8 WIDE
Mfg. item #: PI1
EASYPI1
$9.95 Shipping & Handling on this item or Free Shipping on Easy Wood orders Over $150.001043
$14.99

2546
PT150
EASY 1/8 PARTING TOOL»
Mfg. item #: PT150
EASYPT150
$9.95 Shipping & Handling on this item or Free Shipping on Easy Wood orders Over $150.001043
$139.99

1080
Pi160
PI160 NEGATIVE RAKE CARIDE REPLACEMENT BLADE FOR PI150 - 1/8 EASY PARTING TOOL»
Mfg. item #: Pi160
EASYPI160
$9.95 Shipping & Handling on this item or Free Shipping on Easy Wood orders Over $150.001043
$29.99

1080
