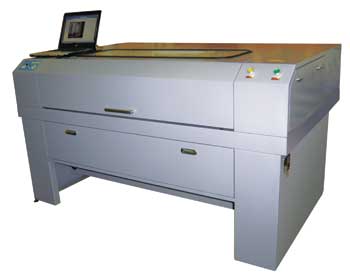

GMC CNC Laser Cutting Machines

Standard Features:

• CNC control, using laptop or desktop PC (not included), software included
• Cutting material: wood, PVC, fiber glass, crystal, plastic, PCB board, rubber, textile, paper and leather, non-metal material, etc.
• Application: building models, plane/boat models, clothing, advertising, Decorating, and gifts, etc.
• Standard USB and parallel port for PC connection
• High speed cutting & precision performance
• Five main systems: mechanical platform, optical system, transmission system, control system, and auxiliary system
• Dynamic laser energy compensation technology
• One year industrial warranty for parts

Optional:

• One day on-site training

There are no further details.

Specifications:	GMC LC 2515	GMC LC 3119	GMC LC 4723	GMC LC 5439
Cutting Capacity	15" x 25"	19" x 31"	23" x 47"	39" x 54"
Laser Power	50 W
Laser Tube Type	CO2 sealed glass tube laser utensil
Cutting Speed	2" - 118" / min	2" - 118" / min	2" - 118" / min	2" - 118" / min
Max. Rapid Traverse	26' / min	26' / min	26' / min	26' / min
Engraving Scanning Speed	2" - 2,360" / min	2" - 2,360" / min	2" - 2,360" / min	2" - 2,360" / min
Max. Scanning Accuracy	2,500 DPI	2,500 DPI	2,500 DPI	2,500 DPI
Laser Power Control	1% - 100% increment by CNC control or manual settings by control knob
Positioning Accuracy	< 0.0004"	< 0.0004"	< 0.0004"	< 0.0004"
Color Separation	8 Colors	8 Colors	8 Colors	8 Colors
Support Image Format	PLT / BMP / DXF
Power Supply	110V, 60 HZ, Single Phase
Machine Weight	440 LBS	495 LBS	627 LBS	836 LBS
Machine Dimensions	48" x 39" x 39"	53" x 39" x 39"	72" x 47" x 39"	76" x 63" x 39"

There is no further information.

There are no listed accessories.
