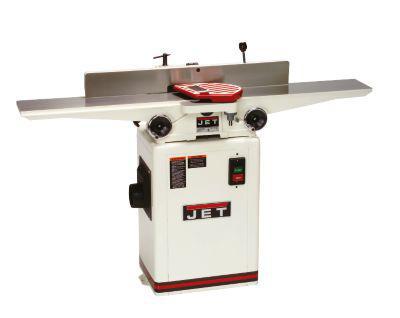

JET 6" Long Bed Jointer

If you are looking for a Jointer that squares your wood, every time; look no further. The JET 6" Long Bed Jointer offers one of the longest working surfaces in its' class. With the addition of an exclusive auto-set quick change knife system you can replace or change all three blades in a fraction of the time other machines take. Make the JET 6" Long Bed Jointer the next high performance machine for your shop



 The Jet JJ-6CSDX, 6" Deluxe Jointer with QS Knives
has a 5 Year warranty

  • Three high-speed steel quick change knives provide rapid cutting, a superior finish and eliminates the need for a knife setting gauge
  • Extra-long heavy-duty cast iron infeed and outfeed tables with precision machined finish
  • Built-in rabbeting ledge adds versatility
  • Two-way tilting fence with positive stops at 45° and 90° to handle bevel operations
  • EXCLUSIVE front-mounted table adjustment handwheels make quick, easy and accurate corrections
  • Industrial push-button controls are conveniently placed for easy access
  • Built-in dust chute with 4" port connects to your collection system for efficient dust/chip disposal
  • Center fence controls are conveniently mounted to allow quick adjustments
  • Powerful 1HP motor easily handles the toughest jointing tasks
  • Heavy-duty, one-piece steel closed stand includes mounting tabs for increased stability
Detailed Specifications
Part Number 708457DXK
Brand Jet
Cutterhead Speed 6000 RPM
Cutting Capacity (W x D) 6 1/16 x 1/2 "
Dust Collection Minimum CFM Required 350 cu.ft/min
Dust Port Outside Diameter 4 "
Family Description 6" LONG BED JOINTER
Fence Positive Stops 45 ° and 90 ° left, 90 ° right
Fence Size (L x H) 32 3/4 x 3 7/8 "
Fence Tilts 45 ° left, 45 ° right
Height 0 inch
Length 0 inch
Model Number JJ-6CSDX
Motor Current 13 / 6.5 A
Motor Phase 1 Ph
Motor Power 1 HP
Motor Voltage 115 / 230 V
Net Weight 237 pound
Number of Knives (Helical/Standard)
Overall Dimensions L" x W" x H" - 56" x 22" x 37-1/2"
Part Number 708457DXK
Prewired Voltage 115 V
Rabbeting Capacity ½ "
Rabbeting Ledge 3 1/8 x 8 3/4 "
Standard Knife Size (L x W x T) 6 1/6 x 3/4 x 5/64 "
Table Height 31¼ "
Table Size (L x W) 56 x 7 3/8 "
Width 0 inch
  WARRANTY AND SERVICE

WMH Tool Group, Inc., warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these WMH Tool Group Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your Jet® tools. For the name of an Authorized Service Center in your area call 1-800-274-6848.
