JET JTM-1055 EVS Milling Machine

JTM-1055
jtm-1055 (3-axis cnc)
30+ inspection
models
Accessories
tool packages

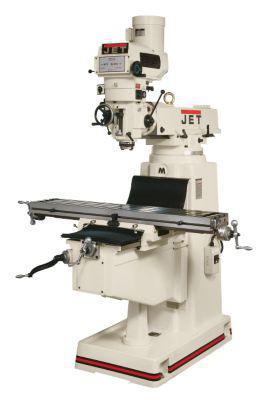

The Jet JTM-1055, 10" x 54" Table, #40 Taper, 5HP, 3Ph, 230/460V
has a 2 Year warranty

Meehanite casting
Hardened and ground table certified to be 52C Rockwell hardness
Chrome lead screws on X and Y axis
Boxed style ways on Y and Z axis
Turcite B on X and Y axis
Satin chrome finished dials
Precision bored and honed milling head
Large diameter quill is chromed
High precision Class 7 spindle bearings
Auxiliary fan cools the spindle head
Chrome plated motor shaft has lower bearing support
Motor pulleys are ground to increase belt lift
One piece quill pinion and shaft
Three stage power downfeed with automatic stop
Heavy duty spindle brake
Locks on all movable surfaces
Internal coolant tank built into base for use with coolant system (coolant pump not included)
Tolerance test sheet included
One shot lubrication system
Way covers
Draw bar
Tool box with tools

Detailed Specifications
Part Number	690055
Brand	Jet
Collet Capacity	1/8 - 7/8
Distance Spindle to Column (in.)	26 (max)
Distance Spindle to Column (min./in.)	5-1/2
Head Movement (deg.)	90ÃÂ° R & L
Height	92 inch
Length	108 inch
Max Distance Spindle to Table ( in.)	20
Model Number	JTM-1055
Motor	5 HP, 230/460V, 3 Ph, Prewired 230V
Net Weight	3300 pound
Note	Use of static phase converter will void warranty
Number of Spindle speeds	Variable
Overall Dimensions	108 X 80 X 92
Prewired 230V	230V
Quill Diameter (in.)	4-1/8
Quill Down feed Rates (IPR)	.0015 - .003 - .006
Range of Spindle Speeds (RPM)	80 - 3800
Spindle Taper	NST #40
T-Slot Centers (in.)	2-1/2
T-Slots Number and Size (in.)	3 and 5/8
Table Cross Travel (in.)	16
Table Longitudinal Travel (in.)	32
Table Size (in.)	10 x 54
Travel of Knee (in.)	17-1/2
Travel of Ram (in.)	20-1/2
Width	80 inch
Work Table Weight Capacity (lbs.)	800

The Jet JTM-1055 Mill with ANILAM 3000M 3-AXIS CNC
has a 2 Year warranty

JTM-1055 MILL WITH ANILAM 3000M 3-AXIS CNC
Meehanite casting
Hardened and ground table certified to be 52C Rockwell hardness
Chrome leadscrews on X and Y axis
Box style ways on Y and Z axis
Satin chrome finished dials
Precision bored and honed milling head
Large diameter quill is chromed
High precision Class 7 spindle bearings
Chrome plated motor shaft has lower bearing support
Motor pulleys are ground to increase belt lift
One-piece quill pinion and shaft

Detailed Specifications
3-Axis CNC	690925
Brand	Jet
Collet Capacity	1/8 - 7/8
Distance Spindle to Column (in.)	26
Distance Spindle to Column (min./in.)	5-1/2
Height	108 inch
Length	92 inch
Max Distance Spindle to Table	20 inches
Motor	5HP, 230/460V, 3Ph (Prewired 230V)
Net Weight	3400 pound
Number of Spindle speeds	Variable
Part Number	690925
Quill Diameter (in.)	4-1/8
Quill Down feed Rates (IPR)	.0015 - .003 - .006
Quill Travel (in.)	5
Quill Travel w/ Powerfeed engaged (in.)	5
Range of Spindle Speeds (RPM)	80 - 3,800
Spindle Taper	NST #40
T-Slot Centers (in.)	2-1/2
T-Slots Number and Size (in.)	3 and 5/8
Table Cross Travel (in.)	16
Table Longitudinal Travel (in.)	32
Table Size (in.)	10 x 54
Travel of Knee (in.)	17-1/2
Travel of Ram (in.)	20-1/2
Width	80 inch
Work Table Weight Capacity (lbs.)	800

30 point inspection

JET METALWORKING'S NEWEST INNOVATION IN PROCESSES AND TECHNOLOGY
You have always counted on JET for Product innovation which we continue to do, but now we are expanding into our processes and technology. With this, we now launch our exciting new program, JET's 30+ Point Machinery Inspection.

JET's 30+ Point Milling and Turning machine process falls under the JET Red Assurance guarantee program. This is the ultimate premium service and quality assurance program offered only by JET, which includes Operational and Visual inspection of every aspect of your machine. It will save many hours of cleaning and getting the machine prepped as it is already done in our Nashville, TN headquarters and no longer on your shop floor. We put it through a complete inspection, and a signed checklist is sent with every machine inspected which will be tracked by serial number and records kept in our Tech Service department.

ALL LARGE INDUSTRIAL MILLS AND LATHES ARE INSPECTED

Operations Checked: All oil levels are checked and filled, all switches, brakes, work lamps and power settings are checked. While under power, all accuracies, gear changes, pumps, spindles and feeds are checked
Visual Inspection: Paint and finish, electrical components and connections, levers and handles
Optional Equipment and Accessories: Installed and tested

ROGRAM BENEFITS:

Builds dealer confidence that his customer will receive a machine that is inspected, cleaned and ready for operation.
Machines are inspected in our Nashville, TN headquarters.
End Users will save hours in preparing machines for use.

Rest assured, JET stands behind all of our metalworking machinery; supporting our dealers, their users and the shops they're used in. You can rely on JET for industry-leading 2 year warranty; USA based customer and tech support and over 40,000 parts in stock. 30+ point inspections are just another way JET Stands Behind Your Work.

Click on a part number below tp be redirected to the price at the bottom of this page
See product descriptions at the bottom of this page for any current specials on select milling machines

JET JTM-1055 10 x 54 VARIABLE SPEED VERTICAL MILLING MACHINES
690055	JTM-1055 Variable Speed Vertical Milling Machine, NST#40 Taper, 230/460V 3Ph
JET JTM-1055 CNC MILLS
691927	JTM-1055 Mill With 2-Axis ACU-RITE MILLPWR CNC
691928	JTM-1055 Mill With 3-Axis ACU-RITE MILLPWR CNC
JET JTM-1055 MILL PACKAGES
690215	JTM-1055 Mill With X-Axis Powerfeed
690255	JTM-1055 Mill With X-Axis Powerfeed and Power Draw Bar
690218	JTM-1055 Mill With X and Y-Axis Powerfeeds
690260	JTM-1055 Mill With X and Y-Axis Powerfeeds and Power Draw Bar
JET JTM-1055 MILLS WITH ACU-RITE DRO
690275	JTM-1055 Mill With ACU-RITE VUE DRO and X-Axis Powerfeed
690052	JTM-1055 Mill With ACU-RITE VUE DRO With X-Axis Powerfeed & Power Draw Bar
690250	JTM-1055 Mill With ACU-RITE 200S DRO
690220	JTM-1055 Mill With ACU-RITE 200S DRO and X Powerfeed
690222	JTM-1055 Mill With ACU-RITE 200S DRO With X and Y-Axis Powerfeeds
690228	JTM-1055 Mill With ACU-RITE 200S DRO With X and Y-Axis Powerfeeds And Power Draw Bar
690229	JTM-1055 Mill With 3-Axis ACU-RITE 200S DRO (Knee) With X and Y-Axis Powerfeeds
650057	JTM-1055 Mill With 3-Axis ACU-RITE 200S DRO (Knee) With X and Y-Axis Powerfeeds and Power Draw Bar
690320	JTM-1055 Mill With ACU-RITE 300S DRO and X-Axis Powerfeed
690321	JTM-1055 Mill With ACU-RITE 300S DRO With X and Y-Axis Powerfeeds
JET JTM-1055 MILLS WITH NEWALL DRO
691222	JTM-1055 Mill With Newall DP700 DRO
691223	JTM-1055 Mill With Newall DP700 DRO and X-Axis Powerfeed
691224	JTM-1055 Mill With Newall DP700 DRO With X and Y-Axis Powerfeed
691225	JTM-1055 Mill With 3-Axis Newall DP700 DRO (Quill)
691226	JTM-1055 Mill With 3-Axis Newall DP700 DRO (Quill) and X-Axis Powerfeed
691227	JTM-1055 Mill With 3-Axis Newall DP700 DRO (Quill) With X and Y-Axis Powerfeeds
691238	JTM-1055 Mill With 3-Axis Newall DP700 DRO (Knee) With X-Axis Powerfeed
691233	JTM-1055 Mill With 3-Axis Newall DP700 DRO (Knee) With X and Y-Axis Powerfeeds

WMH660220 R-8 Milling Tool Kit

Includes:

2" Boring Head with R-8 shank
5 HSS Boring Bars
2-1/2" Fly Cutter with R-8 Shank
3/8" HSS Tool Bit for Fly Cutter
R8 x MT3 Adapter
48 x JT6 Adapter
R8 Shank with Blank End which can be Machined for Special Uses
3-Piece Edge Finder Set
Wiggler set
3 Hex Key Wrenches for all Tool Holders
Works with R8 Spindle Milling Machines

WMH660100KT Milling Accessory Kit

Includes:

6pc R8 Collet Set
52 pcs Clamping Kit
24 pcs Tooling Kit
3/8" HSS Tool Bit for Fly Cutter
6" Verti-Lock Machine Vise

JET TABLE AND KNEE POWERFEEDS FOR MILLING MACHINES
350194	X-Axis Table Powerfeed
350195	Y-Axis Table Powerfeed
350196	Z-Axis Knee Powerfeed
987000004	Powerfeed-2X Installation Charge
987000005	Powerfeed-2Y Installation Charge
987000010	Voltage Change Labor Charge
JET AIR POWERED DRAW BARS
A631	Air Power Draw Bar For JTM-1055 AND JTM-1054R
A630	Air Power Draw Bar For JTM-4VS, JTM-1050, JTM-1050EVS
JET RISER BLOCKS
350096	RB-8-1050, 8 Riser Block
350090	RB-6-P, 6 Riser Block
JET FLOOD COOLANT SYSTEM FOR MILLING MACHINES
A619	Flood Coolant System for Milling Machines
MILLING TOOLING KIT
660220	24-Piece Milling Tool Kit for R-8 Spindle Milling Machines
660100KT	Milling Accessory Kit
MEASURING TOOLS
630400	1-2-3 Block Set in Plastic Case
END MILL SETS
650210	20 Piece Tin-Coated Double End Mill Set
650211	20 Piece Tin-Coated Single End Mill Set
CLAMPING SETS, 52 PIECES, INCLUDING METAL STORAGE TRAY
660012	CK-12, 52-Piece Clamping Kit with Tray for 5/8 T-Slot
660038	CK-38, 52-Piece Clamping Kit with Tray for 1/2 T-Slot
660058	CK-58, 52-Piece Clamping Kit with Tray for 3/4 T-Slot
R-8 COLLET SETS
650132	CS-R8, 6-piece R-8 Collet Set
650133	Premium 6 Piece R-8 Collet Set
MILL CHUCK AND COLLET SET, WITH CARRY CASE
466001	CCS-1, R-8 Collet

660220 - 24- Piece Milling Tool Kit for R-8 Spindle Milling Machines

Features:

24pc Set consists of:
5pc Wiggler Set
5pc 1/2 inch HSS Boring Bars
1pc Drill Drift
3pc Edge Finders
1pc Arbor JT6 to R8
1pc Adapter R8 to MT3
1pc 3/4 inch Shank
1pc 3/4 inch Boring Head
3pc. Hex Keys
1pc 2-1/2 inch Fly Cutter
1pc 3/8 x 3 inch Square Tool Bit
1pc Blank R8 Arbor

660100KT - Milling Accessory Kit

650132 Collet Set
660012 Clamping Kit
660220 Tooling Kit
63186 Verti-lock Machine Vise

650132 - The Jet CS-R8, 6-piece R-8 Collet Set 1/8 - 3/4 inch (8ths)
has a 90 Days warranty

R-8 Collets For Use With Milling Machines
Precision hardened and ground Collets
Premium Collets with 0.0005mm T.I.R.
Premium R-8 Collet Set
6 Piece Set
1/8 to 3/4 inch by 1/8ths


	660012 - The Jet CK-12, 52-Piece Clamping Kit with Tray for 5/8" T-Slot has a 90 Days warranty Metal storage tray can be mounted on machine or wall Three complete sets to choose from 52-piece kit includes: Six T-slot nuts Six Flange nuts Four Coupling nuts Six Step blocks Six Step clamps Twenty four Studs, four each (3", 4", 5", 6", 7" & 8" lengths)


	660220 - The Jet 24- Piece Milling Tool Kit for R-8 Spindle Milling Machines has a 90 Days warranty 24pc Set consists of: 5pc Wiggler Set 5pc 1/2 inch HSS Boring Bars 1pc Drill Drift 3pc Edge Finders 1pc Arbor JT6 to R8 1pc Adapter R8 to MT3 1pc 3/4 inch Shank 1pc 3/4 inch Boring Head 3pc. Hex Keys 1pc 2-1/2 inch Fly Cutter 1pc 3/8 x 3 inch Square Tool Bit 1pc Blank R8 Arbor

63186 - The Wilton Verti-Lock Machine Vise 6 inch Jaw Width, 7-1/2 Jaw Opening has a Lifetime warranty

The ductile alloy vise body with flame-hardened bed provides solid work support, accuracy, and longevity
The fixed jaw is rated at 85,000 PSI and the annealed, surface ground sliding jaw at 70,000 PSI
Totally enclosed vise screw is cut from special alloy steel, hardened and ground.
The vise and optional swivel base have coolant troughs to channel fluid out of your way.
