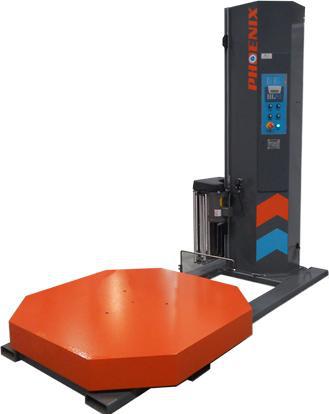

Phoenix PHP-2100 High Profile Semi-Auto

Part Number Description
PHP-2100 PHP-2100 4000 lb capacity, High Profile Stretch Wrapper
OPTIONS
PHHP1001 Base Extension for High Profile ( Price per Foot )
PHHP1006 PHP Split Base (Tower Mounted Separately)
PHHP1005 Automatic End of Cycle Film Cut-Off
PHHP1002 Extended Tower - 92 inch Wrap Height
PHHP1002A  Extended Tower - 104 inch Wrap Height
PHHP1002B Extended Tower - 116 inch Wrap Height
PHHP1015 Dark Load Special Auto-Height Photo Eye
PHHP1003 30 inch Powered Pre-Stretch Film Carriage Upgrade
PHHP1016 Cold Temperature Package # 1 to 0 Degrees C (32F)



Our Entry Level High Profile Stretch Wrapper
Our PHP-2100 is excellent for the typical warehouse environment, it provides a consistent, repeatable stretch wrap machine performance. 4000 lbs Load Weight Capacity with 15 RPM Stretch Wrapping Speed is the Best in Class for control feature and capabilities

BIGGER - 56 x 56 inch MAX LOAD CAPACITY - THE LARGEST IN HIS CLASS!

  • Constant loading and unloading of heavy pallets on the turntable takes its toll on this most critical element of the machine. Heavy-duty, robust construction and durable components are the choices we make when it comes to this part of the machine. 56 x 56 max pallet size (80 inch load diagonal)octagonal table,  largest pallet wrapper turntable capacity in its class. High Resolution Pulse Count System for table rotation provides precise top and bottom wrap counts and aligns the table back to its original start position.
  • Larger, Heavier, and Faster wrapping than most competitive machines, with 5x  high capacity table support casters containing roller bearings with easy access center grease nipple. #50 ansi heavy duty roller chain drive with constant tensionner

HEAVIER - 4,000 Lbs. HEAVIEST WEIGHT CAPACITY IN HIS CLASS!

  • Our rugged turntables have been engineered for smooth and long-lasting operation. 56 x 56 x 80 inch load size, 4,000 lbs. weight capacity turntable c/w 5 heavy duty casters on welded supports. Forklift portable from either end of machine frame

FASTER - 15 RPM, FASTEST WRAPPING SPEED IN HIS CLASS!

  • With 15 rpm table speed the php-2100 is the fastest stretch wrapper in his class. Up to 40 pallets per hr. (based on load configuration and machine options), larger, variable speed drives control all motors for maximum flexibility, heavier, and faster wrapping than most competitive machines with our 56 x 56 inch load size and 4,000 lbs capacity.

FLEXIBLE - PHOENIX OPERATOR INTERFACE CONTROL OFFERS OPTIONS AND FLEXIBILITY AS STANDARD!

  • Provides all features as standard…. including those not available (or an upcharge) on competitive models.
  • Complete wrapping flexibility including 3 wrapping cycles, reinforce wrap and cycle pause capability, Keypad Control Panel with Variable Speed Drive. Multiple wrap patterns to select from:
  • Including Wrap Up/Down and Wrap Up Only, Cycle pause and Re-Inforce Wrap. Just to give you added flexibility to meet your customer's requirements.

SAFER - 3 STEP EASY THREAD FILM LOADING ENSURES MAXIMUM SAFETY

  • Re-loading the Film roll on any carriage is not an easy task with many machines. With our Easy Thread access design, we make it simple and safer. Simply unlatch and open the access door, pull film tail past open access door and close the door. It's that simple!

FILM SAVINGS - SEPARATE 1-9 TOP AND BOTTOM WRAP PROVIDES UP TO 15 percent FILM SAVINGS!

  • Separate 1-9 top and bottom wrap count provides up to 15 percent film savings. apply only the stretch film required at the top separately from the bottom compared to competitive models that applies a common amount to top-bottom regardless of need.
  • Separate up and down carriage speeds eliminates the time and wasted stretch film applied with competitor’s common speed control. (Up to 10 percent savings).



OVERVIEW OF THE PHOENIX PHP-2100 PALLET STRETCH WRAPPER
Best in Class Wrapping Flexibility c/w Keypad Control provides all features as standard…. Including those not available (or an upcharge) on competitive models.

Capacity

  • 56 x 56 MAX Pallet Size (80 inch Load Diagonal) Largest Pallet Wrapper Turntable Capacity in its Class.

Speed

  • 15 RPM Stretch Wrapping Speed. The fastest stretch wrapper in its Class.

Complete Wrapping Flexibility Including:

  • 3 Wrapping Cycles: Wrap up, Wrap up/down, Top Cover Pause.
  • Reinforce Wrap and Cycle pause capability.
  • Keypad controls of all parameters.

Stretch Film Saving features such as:

  • Separate 1-9 top and bottom wrap count provides up to 15 percent Savings. Apply only the stretch film required at the top separately from the bottom compared to competitive models that applies a common amount to top and bottom regardless of need.
  • Separate up and down carriage speeds eliminates the time and wasted stretch film applied with competitor’s common speed control. (Up to 10 percent Savings).

Standard Superior Features

  • 4,000 lbs. weight capacity turntable c/w 5 Heavy Duty Casters on Welded Supports.
  • Variable Speed Drives control all motors for maximum flexibility.
  • Electronic stretch film tension control with Analog electronic Sensor provides the ultimate in feedback control.
  • Forklift portable from Front and Back of machine.
  • Heavy-Duty structural steel tubing and frame.
  • Steel cross member reinforcement in tower and turntable.
  • 8-3/4 inch Turntable Elevation – Competitive models are typically 12 to 13 inch.
  • NEMA control enclosure.
  • Automatic Load Height sensing photoeye is mounted in the stretch film carriage with adjustable track.
  • Guaranteed For Life Prestretch rollers with 245 percent prestretch ratio as standard.
  • 5 Year Warranty.

Best in Class Safety features:

  • Film loading Safety Shut-off switch automatically shuts down power during stretch film loading by Operator.
  • Easy Film Loading carriage with double lock door control for guaranteed locking.
  • Mushroom Twist and Pull E-Stop Button.

Stretch Wrapping Options:

  • 30 inch Prestretch Carriage for wider stretch film.
  • Extended Wrap Height Capacity up to 116 inch.
  • Extended load diagonal for larger pallet sizes.
  • Automatic End of Cycle Film Cut-Off.
  • Many other options are available...

PHP-2100
PHP-2100 4000 LB CAPACITY, HIGH PROFILE STRETCH WRAPPER
Mfg. item #: PHP-2100
PHOPHP-2100
lease to own for as little as:$236 per month!
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.11
$11,820.00

303
PHHP1001
BASE EXTENSION
Mfg. item #: PHHP1001
PHOPHHP1001
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$755.00

303
PHHP1006
SPLIT BASE (FOR MODELS PLP-2100 & PLP-2150)
Mfg. item #: PHHP1006
PHOPHHP1006
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$1,495.00

303
PHHP1005
AUTOMATIC END OF CYCLE FILM CUT-OFF
Mfg. item #: PHHP1005
PHOPHHP1005
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$1,175.00

303
PHHP1002
EXTENDED TOWER - 92 WRAP HEIGHT
Mfg. item #: PHHP1002
PHOPHHP1002
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$1,065.00

303
PHHP1002A
104 WRAP HEIGHT
Mfg. item #: PHHP1002A
PHOPHHP1002A
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$1,290.00

303
PHHP1002B
EXTENDED TOWER - 116 WRAP HEIGHT
Mfg. item #: PHHP1002B
PHOPHHP1002B
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$1,580.00

303
PHHP1015
DARK LOAD P/E
Mfg. item #: PHHP1015
PHOPHHP1015
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$975.00

303
PHHP1003
30 CARRIAGE
Mfg. item #: PHHP1003
PHOPHHP1003
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$1,215.00

303
PHHP1016
COLD TEMPERATURE PACKAGE # 1 TO 0 DEGREES C (32F)
Mfg. item #: PHHP1016
PHOPHHP1016
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$1,185.00

303
