Polyester Web Slings

Polyester Web Slings

Features
  • Use with overhead hoists, cranes and winches
  • Flexible and easy-to-handle for irregular or bulky loads
  • Constructed of heavy-duty 2-ply polyester webbing
  • Red color core provides easy-to-notice warning that sling is damaged and much be replaced
  • Reinforced flat eyes (Type III) resist abrasion
  • Slings are proof-tested, certified and exceed all OSHA and ANSI B30.9 standards

CAUTION: Do not exceed rated capacities. Read owner¹s manual for additonal warnings and precautions.

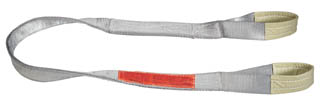

Shown Left to Right: Vertical, Choker, Basket


Capacities (lbs)

Stock No. Width (in) Length (ft) Vertical Choker Basket Net Wt. (lbs)
252300 2 6 6,400 5,000 12,800 2
252301 2 8 6,400 5,000 12,800 2-3/4
252302 2 10 6,400 5,000 12,800 3-1/4
252310 3 6 8,600 6,900 17,200 2-3/4
252311 3 8 8,600 6,900 17,200 3-1/2
252312 3 10 8,600 6,900 17,200 4-1/4
252320 4 8 11,500 9,200 23,000 4-3/4
252321 4 10 11,500 9,200 23,000 5-3/4
252322 4 12 11,500 9,200 23,000 7
There are no further details.
There are no further specifications.
There is no further information.
There are no listed accessories.
