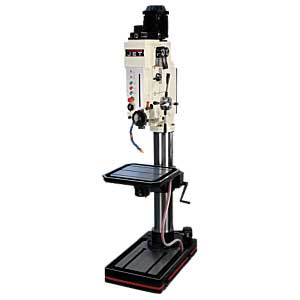

Jet J-2380 33 inch Direct Drive Drill Press


jet 2 year warranty logo

At a Glance
Specifications
Warranty
Accessories

The Jet J-2380 33 inch DIRECT DRIVE DRILL PRESS 7-1/2HP
has a 2 Year warranty

Direct drive round column drill press with mechanical clutch
Two speed forward and reverse switch
Mechanical powerfeed clutch engagement
Heavy duty quill and spindle
Tempered, ground spindle with internal taper mounted in precision bearings for maximum accuracy, minimizing deflection
Speed and feed selectors are located on one side of the drill head for convenience and ease of operation
Oversized base is precision ground with T-slots for added versatility and stability
Spindle gear box is equipped with steel hardened, ground, shafts and gears
Spindle gear box is internally lubricated in a continuous oil bath for long term smooth operation.
Tilting table, 45 degree left and right
Powerfeed can be disengaged manually
Automatic tool ejector
Manual quill lock
Coolant system
Low voltage at switch

Detailed Specifications
Part Number	354052
Auto	.002, .004, .006, .008, .014, .020
Base Dimensions (LxWxH/ in.)	114 x 33 x 54
Base Slots Number & Size (in.)	2 x 5/8
Brand	Jet
Distance Base to Spindle (in.)	51
Distance Column to Spindle (in.)	16-1/2
Drilling Capacity Cast Iron (in.)	2-7/8
Drilling Capacity Mild Steel (in.)	2-3/4
Drills to Center of Circle (in)	33
Height	54 inch
Length	114 inch
Max Distance - Spindle to Table (in)	30-1/2
Max Distance Spindle to Table ( in.)	30-1/2
Model Number	J-2380
Motor	7-1/2 HP, 230/460V, 3 Ph, Prewired 230V
Net Weight	3065 pound
Number of Powerfeeds	6
Number of Spindle speeds	12
Part Number	354052
Quill Diameter (in.)	3.78
Quill Down feed Rates (IPR)	.002, .004, .006, .008, .014, .020
Quill Travel (in.)	11
Quill Travel w/ Powerfeed engaged (in.)	11
Range of Spindle Speeds (RPM)	42, 58, 86, 116, 154, 249, 304, 412, 554, 748,1098, 1458
Spindle Distance to Base (in.)	51
Spindle Distance to Table (max./in.)	30-1/2
Spindle Distance to Table (min./in.)	2-3/4
Spindle Taper	MT-5
Spindle Travel (in.)	11
Swing (in.)	16-1/2
T-Slots Number and Size (in.)	3 x 5/8
Table Dimensions	23-1/2 x 23-1/2
Table Size (in.)	23-1/2 x 23-1/2
Tapping Capacity Cast Iron (in.)	2-3/8
Tapping Capacity Mild Steel (in.)	2-1/8
Web Description	J-2380 33 inch DIRECT DRIVE DRILL PRESS 7-1/2HP
Width	33 inch
Work Table Weight Capacity (lbs.)	400

2 YEAR WARRANTY AND SERVICE
WMH Tool Group, Inc., warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these WMH Tool Group Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your Jet tools. For the name of an Authorized Service Center in your area call 1-800-274-6848.

JET Red Assurance

At JET not only do we warranty every product we develop, but we ensure that our after sale service and support is number 1. Our customer rated 9 out of 10 Customer Service, Technical Support, 40,000 plus unique parts in stock, and leading warranties guarantee we have the industrys most dependable service and support program.

If a JET tool needs service or repair, one of our 750 Authorized Service Centers located in all 50 states can assist you. In most cases Authorized Service Centers can perform a warranty repair, assist in obtaining replacement parts, perform routine maintenance, and perform a major repair on your JET Tool. For the name and locationof an Authorized Service Center in your area call 1 (800) 274-6848.

From here forward, look for our JET RED Assurance stamp. Whenyou see this logo you can rest assured that behind every product isdecades of Reliability, Expertise, and Dependability.

There are no listed accessories.
