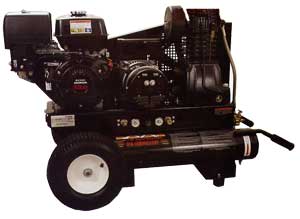

Mi - T - M Air Compressor/Generator

Increase productivity by condensing two vital pieces of equipment into one versatile must-have machine! Professional remodelers, contractors and DIYers will appreciate the convenience of an air compressor with a built-in generator system. Ideal for every industrial application that requires both electrical power and air.

Features:

Industrial OHV Honda Engine
Industrial 1800 or 3500 watt generator
Quality single or two stage compressor
Aluminum head for heat dissipation
Cast iron crankcase
Splash lubrication extends the hours of preformance
Durable stainless-steel braided discharge hose for longer life
Large canister intake filter
Brushless 120V altrenator
Quality pilot valve unloader
12-inch or 16.5-inch fly wheel for extra cooling and longer life
14-gauge powder coated two-
Belt tightening system pulls engine straight to ensure constant belt alignment
7-gauge base plate to reduce vibration
Powder coated 8 gallon twin tank receivers
Regulator and two gauges for tank and outlet pressure
Manual drain valves for proper maintenance
Pneumatic tires with tubes and steel hubs (AG1-PH65-08M & AG2-PH13-08M)
Convenient lifting handles (AG1-PH65-08M & AG2-PH13-08M)
Powder coated lifting hook (AG2-PH13-08M)
Two (2) year limited warranty
Two (2) year limited warranty on Honda engine

Model no.	AG1-PH65-08M	AG2-SH15-08M	AG2-PH13-08M
Engine	Honda OHV	Honda OHV	Honda OHV
Horsepower	6.5	13	13
CFM @ 100 PSI	11.6	16.3	16.3
CFM @ 175 PSI	N/A	15.7	15.7
Max. Output	1800 watts	3500 watts	3500 watts
Pump	Schulz	Schulz	Schulz
Dim. (LxWxH)	44.5" x 26" x 27.5"	44" x 22" x 32"	44" x 22" x 32"
Ship Wt.	257 lbs	425 lbs	425 lbs
Net Wt.	207 lbs	360 lbs	360 lbs
