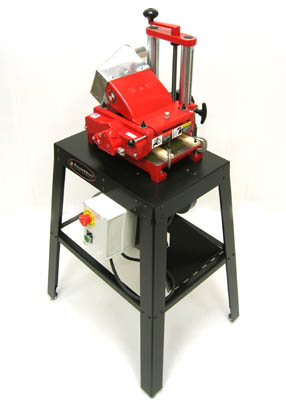

William & Hussey "Original" Molder

The W&H Molder's low cost and its capacity to produce high quality moldings is an unbearable combination. The W&H provides a safer alternative to a shaper and makes most profiles in a single pass.

The Original Molder is capable of producing straight and roundtop moldings as is, add the elliptical jig for all your elliptical molding needs! All molders come equipped with a multi-pass system and use a two knife self-aliging system making set up quick and easy!



Applications

Our customers have revealed to us the machines range of versatility. From the trimming of a multimillion dollar home, to the making of game calls, to picture frames, to custom redwood planters. The variety of tasks it is capable of seems inexhaustible.

s-h alt

Specifications:

Package Includes:

  • 2 HP Motor (Mfg warranty of motor)
  • 7000 RPM Arbor
  • Height Above Final Cut: 3/16"
  • Max Profile Depths:3/4"
  • Max profile width: 6 3/4"
  • Planes 7" wide
  • Minimum Stock Length: 9"
  • Minimum Stock Thickness: 1/4"
  • Maximum Stock Thickness: 8"
  • Working Height: 31"
  • Overall Height: 45"
  • Overall Width: 20"
  • Overall Length: 33"
  • Pkg. Weight: Appox 220lbs
  • Molder
  • Belt & Pulley
  • Stand
  • Dust Hood
  • 2 HP Motor
  • Magnetic Dropout
  • Switch w/Cords
  • Table Guides

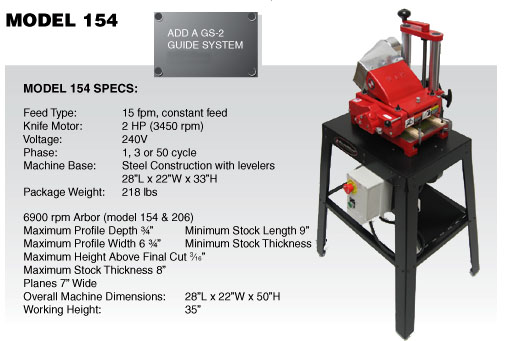

Williams & Hussey Model 154 Planer / Molder
154CE-1PH-208V-K Model 154CE, Single Phase, 208V (constant feed; 11 fpm)
154CE-1PH-240V-K Model 154CE, Single Phase, 240V (constant feed; 11 fpm)
EJ-92 Elliptical Jig
MP-06-YELLOW-K Multi-Pass Kit Made with yellow roller
MP-06-GREEN-K Multi-Pass Kit Made with green roller
P-123-K Feed Roll Kit (2 yellow rolls, 4 axles, thread locker)
P-160-K Feed Roll Kit (1 yellow, 1 green roll, 4 axles, thread locker)
GS-2-1 Guide System, Textured, 9/32" Slots ** (older style molder bases require GS-02 hardware kit)
GS-02 Hardware and instructions to drill holes in molder bed
54-400 Rockler Mobile Base
54-402 Stationery Machine Base
EJ-92 Elliptical Jig
VF-106-K Vari-Feed Retro with 240V, DC Control
VF-104-K Vari-Feed Retro with 240V, AC/DC Control
54-404 V-Belt, A, Powertwist, 45 inch (For new machine base)
54-406 V-Belt, A, Powertwist, 47 inch -  For machine bases prior to June, 2010

Warranty

The W&H has been a proven design since 1926. it will mold and plane with great precision. Your W&H is warranted for 7 years. in addition, as long as you own it, competent help with its care and operation is as close as your phone.

s-h alt

154CE-1PH-208V-K
MODEL 154CE, SINGLE PHASE, 208V (CONSTANT FEED; 11 FPM)
Mfg. item #: 154CE-1PH-208V-K
WMS154CE-1PH{00
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.11
NEW ITEM
$2,295.00

61
154CE-1PH-240V-K
MODEL 154CE, SINGLE PHASE, 240V (CONSTANT FEED; 11 FPM)
Mfg. item #: 154CE-1PH-240V-K
WMS154CE-1PH{01
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.11
NEW ITEM
$2,295.00

61
EJ-92
ELLIPTICAL JIG
Mfg. item #: EJ-92
WMSEJ-92
FREE shipping when ordered with a machine from this manufacturer.20
$495.00

61
MP-06-YELLOW-K
MULTI-PASS KIT MADE WITH YELLOW ROLLER
Mfg. item #: MP-06-YELLOW-K
WMSMP-06-YEL{00
FREE shipping when ordered with a machine from this manufacturer.20
NEW ITEM
$99.00

61
MP-06-GREEN-K
MULTI-PASS KIT MADE WITH GREEN ROLLER
Mfg. item #: MP-06-GREEN-K
WMSMP-06-GRE{00
FREE shipping when ordered with a machine from this manufacturer.20
NEW ITEM
$99.00

61
P-123-K
FEED ROLL KIT (2 YELLOW ROLLS, 4 AXLES, THREAD LOCKER)
Mfg. item #: P-123-K
WMSP-123-K
FREE shipping when ordered with a machine from this manufacturer.20
$99.00

61
P-160-K
FEED ROLL KIT (1 YELLOW, 1 GREEN ROLL, 4 AXLES, THREAD LOCKER)
Mfg. item #: P-160-K
WMSP-160-K
FREE shipping when ordered with a machine from this manufacturer.20
$99.00

61
GS-2-1
GUIDE SYSTEM, TEXTURED, 9/32 SLOTS ** (OLDER STYLE MOLDER BASES REQUIRE GS-02 HARDWARE KIT)
Mfg. item #: GS-2-1
WMSGS-2-1
FREE shipping when ordered with a machine from this manufacturer.20
NEW ITEM
$99.00

61
GS-02
HARDWARE AND INSTRUCTIONS TO DRILL HOLES IN MOLDER BED
Mfg. item #: GS-02
WMSGS-02
FREE shipping when ordered with a machine from this manufacturer.20
$10.00

61
54-400
ROCKLER MOBILE BASE
Mfg. item #: 54-400
WMS54-400
FREE shipping when ordered with a machine from this manufacturer.20
$185.00

61
54-402
STATIONERY MACHINE BASE
Mfg. item #: 54-402
WMS54-402
FREE shipping when ordered with a machine from this manufacturer.20
$325.00

61
VF-106-K
VARI-FEED RETRO WITH 240V, DC CONTROL
Mfg. item #: VF-106-K
WMSVF-106-K
FREE shipping when ordered with a machine from this manufacturer.20
$579.00

1804
VF-104-K
VARI-FEED RETRO WITH 240V, AC/DC CONTROL
Mfg. item #: VF-104-K
WMSVF-104-K
FREE shipping when ordered with a machine from this manufacturer.20
$775.00

61
54-404
V-BELT, A, POWERTWIST, 45 (FOR NEW MACHINE BASE)
Mfg. item #: 54-404
WMS54-404
FREE shipping when ordered with a machine from this manufacturer.20
$35.00

61
54-406
V-BELT, A, POWERTWIST, 47
Mfg. item #: 54-406
WMS54-406
FREE shipping when ordered with a machine from this manufacturer.20
$36.00

61
