Baileigh Ferrous & Non-Ferrous Cold

Baileigh Cold Saws Logo

Manual Cold Saws - Ferous & Non-Ferrous
FERROUS: Cast Iron, Carbon, Steel, Alloy Steel, Stainless Steel, Tool Steel, HSLA Steel
Non-Ferrous: Aluminum, Beryllium, Copper, Lead, Magnesium, Nickel, Precious Metals, Tin, Titanium, Zinc

BAILEIGH CS-350EU MITER HEAD FERROUS COLD SAW
14" Blade / Variable
Speed 24-120 RPM

baileigh cs-350P miter ferrous saw w/air vise
14" Blade / 2 Speed
26 & 52 RPM

baileigh cs-355M h.d. Miter non-ferrous cold saw
14" Blade / 3200 RPM
Heavy Duty

Semi-Automatic Cold Saws
Ferous & Non-Ferrous - Pivot Type
FERROUS: Cast Iron, Carbon, Steel, Alloy Steel, Stainless Steel, Tool Steel, HSLA Steel
Non-Ferrous: Aluminum, Beryllium, Copper, Lead, Magnesium, Nickel, Precious Metals, Tin, Titanium, Zinc

Baileigh CS-275SA - Semi-Auto feed ferrous metal cutting coldsaw
11" Blade / 2 Speed 60 & 120 RPM
High Production

baileigh cs-350sa - semi-auto feed ferrous metal cutting coldsaw
14" Balde / 2 Speed 26 & 52 RPM
High Production

Semi-Automatic Cold Saws
Ferous - Column Type
FERROUS: Cast Iron, Carbon, Steel, Alloy Steel, Stainless Steel, Tool Steel, HSLA Steel

baileigh cs-385sa semi-auto vertical column ferrous cutting cold saw
14" / 15-1/2" Blade
2 Speeds - 35RPM & 70 RPM

baileight cs-c425sa - semi-auto vertical column ferrous cutting bandsaw
14" /  16-1/2" Blade
4 Speeds - 35, 70, 60 & 120 RPM



baileigh cs-c485sa semi-auto vertical column ferrous cutting bandsaw
14" / 16-1/2" Blade
Variable Speed 40 - 240 RPM



Other Baileigh Metal Cutting Saws
Cutting Fluids & Coldsaw Blades

Cold Saw Machines

Baileigh's line of miter cold saws consists of Manual Coldsaws, semi automatic and automatic cold saws for all small to high production requirements. The Baileigh Brand stands for excellent quality and support at a competitive price. All of our circular cold saws are built to the highest quality standards on the market today. Using this type of machine can cut tubing and pipe virtually burr free with a machined like finish at a tolerance of .0005". Each coldsaw we offer will be in your production or fabrication shop offering decades of service. Please read on as we summarize our quality line of metal cutting saws.

The line up of manual and semi-automatic coolant lubricated metal cutoff saws consists of 9" to 16.5" saws. Each cold saw has a heavy cast iron base frame with way support system and a cast sawing head that is mounted on a sturdy steel cabinet. The cabinet houses the electrical system, coolant system and has several storage compartments for housing Cold Saw Blades and changeover tooling. A nice sturdy meter long material stop is included and lists inches and metric increments. The coolant sytem uses an industrial grade pump to properly wash away cut chips from the cold saw blade and the material being cut. The coolant system, using a synthetic 10 to 1 mixture extends blade life. Each metal cutting saw offers two cutting speeds to allow for the proper speeds for aluminum, stainless steel and mild steel. The head can swivel or miter up to 60 degrees in one direction and up to 90 degrees in the other direction allowing for 150 degree total swing. The vise is self centering so that the material always starts in the proper position on the blade regardless of the outside diameter of the material being cut. The vise uses a dual clamping system so the cut piece and stock bar or tube are both being held securely throughout the cutting process, which increases blade life. The vise jaws have a diamond groove that allows the cut on square tubing to begin on the pointed edge that increase blade life and speed of cut. A Baileigh metal cutting circular saw is heavily built with a very powerful AC motor coupled to an industrial grade gear box ready to provide decades of consistent sawing.

The Manual Cold Saws comes standard with a manually tightening vise or the optional pneumatic clamping vise. To produce a cut make sure the swivel cutting head is at the degree you wish to cut, that the head is locked down and finally that the blade clears the vise jaws. Put the metal to be cut in the vise and tighten the vise jaws. The operator will then put their hand on the trigger switch located at the end of the pull down handle and pull the trigger, which begins turning the Cold Cut Sae Blades and starts the flow of coolant. Pull the handle down into the metal and proceed with a good amount of pressure until the cut is complete, at which time let go of the trigger and allow the spring loaded return help lift the cutting head in preparation for the next cut. A Manual Cold SSaws is perfect for the fabrication or production shop where a lot of different sizes are to be cut in small production runs.

The semi automatic cold saw comes standard with the pneumatic clamping vise. To produce a cut make sure that the coldsaws cutting head is at the proper degree you wish to cut, and that it is in the locked position. Make sure that the blade clears the vise jaws. Next insert the tubing to be cut in the vise and butt it up to the material stop. Press the foot pedal making sure that your hand is clear of the vise jaws and the pneumatic vise automatically clamps the material. The mitering saw head starts turning while the coolant begins to run on the blade during the descent and throughout the cutting process until the cut is complete. When the cut is complete the blade and coolant stop running and the cold saw head automatically returns to the start position and the vise opens up ready for the next cut. A Semi-Automatic Cold Saw s perfect for the fabrication or production shop where medium production runs are required of the same thing.

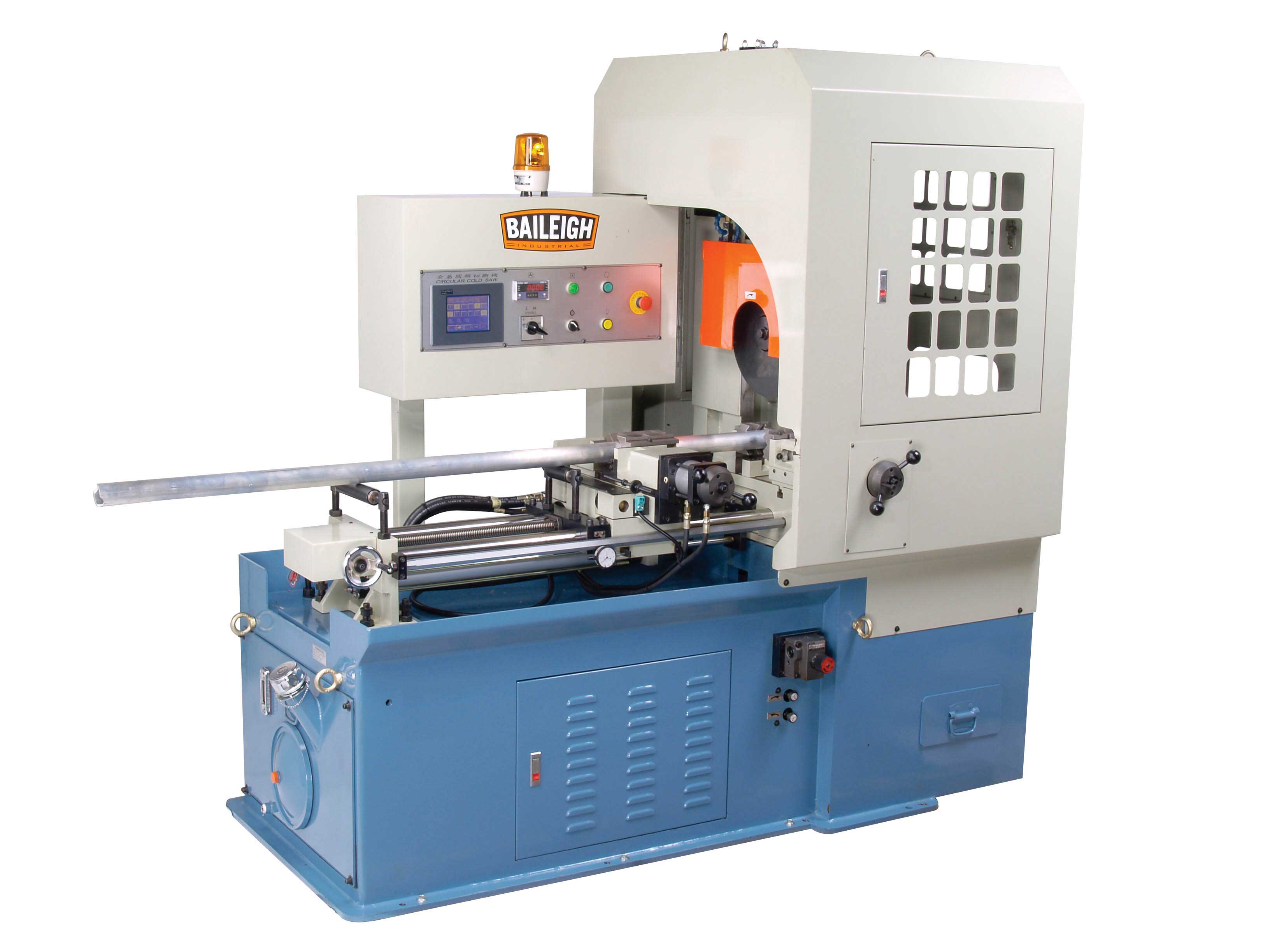

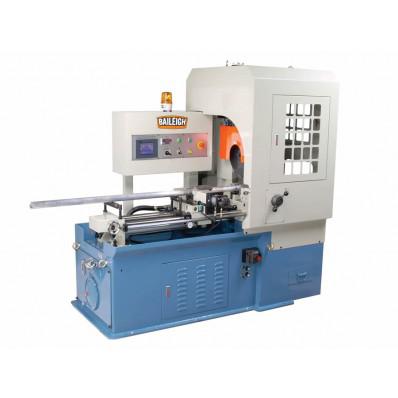

Baileigh's metal saw line also consists of our Automatic Cold Saws For mild steel and stainless steel our CS-475 is the perfect Metal Cutting Saw for medium to large production runs and comes standard with four cutting speeds. For aluminum our CS-400 is the perfect cutting saw for medium to large production runs and is equipped to run the blade at speeds of 3200 RPM which makes it great for extrusions as well. Both coldsaws are column type machines offering the most rigidity for the investment and they both weigh in at an impressive 3200 lbs of muscle. An easy to use operator touch screen can be used to pull up an existing program or to make a new program for the automatic feeding of tubing or pipe. The CS-360AB-2S cold saw comes with a hopper loading system and is great for very large production runs of various sizes of tube or pipe.

Baileigh metal cutting saws offer Saw Blades that runs at low RPMs for non ferrous and high RPMs for ferrrous materials. Our cold saws are heavily built using only the highest quality design and components that allows for some of the tightest cut tolerances (+/- .0005) in the industry. The tight tolerances, and fast cut rates make these a real profit maker for any manufacturing setting. Please click on the type of cold saw you require to find out more information on quality made Baileigh saws.
