IMC Bel Air Elite Series


Elite units include our most popular options.
These units are available in 5 through 10HP configuration and include after-cooler,
automatic tank drain, low oil level switch and magnetic motor starter.
All of these items are factory installed and tested.

STANDARD FEATURES:

* START-STOP PRESSURE SWITCH CONTROL
* ASME SAFETY VALVES
* FULLY ENCLOSED BELT GUARD
* TANK DRAIN AND DISCHARGE VALVE
"E" SUFFIX DENOTES "ELITE SERIES" MODELS
 * ALL "ELITE SERIES" COMPRESSORS INCLUDE: MAGNETIC STARTER, LOW OIL SWITCH, AND
AUTOMATIC TANK DRAIN, PLUS:
 ALL 5-7.5 HP "ELITE SERIES" COMPRESSORS INCLUDE TRIPLE PASS PUMP-MOUNTED AFTERCOOLER
 ALL 10-15 HP "ELITE SERIES" COMPRESSORS INCLUDE BELTGUARD AFTERCOOLER

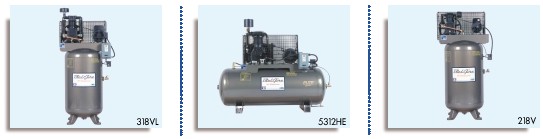

TWO STAGE ELITE ELECTRIC COMPRESSORS
  MOTOR TANK CFM ACFM @ MAG REC. SHIP.
HP MODEL VOLT/PHASE (GAL.) DISPL. 100 PSI START DRYER WT.
5 318HE 208-230/1 80H 22.43 18.50 INCL. HT20 501
5 318VE 208-230/1 80V 22.43 18.50 INCL. HT20 467
5 338HE 208-230/460/3 80H 22.43 18.50 INCL. HT20 481
5 338VE 208-230/460/3 80V 22.43 18.50 INCL. HT20 453
7.5 318HLE 208-230/1 80H 32.52 25.25 INCL. HT25 548
7.5 318VLE 208-230/1 80V 32.52 25.25 INCL. HT25 489
7.5 338HLE 208-230/460/3 80H 32.52 25.25 INCL. HT25 491
7.5 338VLE 208-230/460/3 80V 32.52 25.25 INCL. HT25 477
10 5312HE 208-230/460/3 120H 44.49 37.23 INCL. AR35 765
10 5312VE 208-230/460/3 120V 44.49 37.23 INCL. AR35 854

There is no further information.
There are no listed accessories.
318HE
BELAIRE 318HE - 5 HP 80 GALLON HORIZONTAL, 175 PSI, 230/1/60, 16.6 CFM, T39 PUMP, 184 T FRAME MOTOR, W/STARTER - 5 HP ELITE MODELS: TWO-STAGE
ELITE MODELS INCLUDE: AUTOMATIC TANK DRAIN, BELT GUARD AFTERCOOLER AND LOW OIL LEVEL SWITCH
Mfg. item #: 318HE
IMC318HE
lease to own for as little as:$57 per month!
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.6
$2,849.99

80
318HLE
BELAIRE 318HLE - 7.5 HP 80 GALLON VERTICAL, 175 PSI, 230/1/60, 22.2 CFM, T39 PUMP, W/STARTER - 7.5 HP ELITE MODELS: TWO-STAGE
ELITE MODELS INCLUDE: AUTOMATIC TANK DRAIN, BELT GUARD AFTERCOOLER AND LOW OIL LEVEL SWITCH
Mfg. item #: 318HLE
IMC318HLE
lease to own for as little as:$64 per month!
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.6
$3,199.99

80
318VE
BELAIRE 318VE - 5 HP 80 GALLON VERTICAL, 175 PSI, 230/1/60, 16.6 CFM, T39 PUMP, 184 T FRAME MOTOR, W/STARTER - 5 HP ELITE MODELS: TWO-STAGE
ELITE MODELS INCLUDE: AUTOMATIC TANK DRAIN, BELT GUARD AFTERCOOLER AND LOW OIL LEVEL SWITCH
Mfg. item #: 318VE
IMC318VE
lease to own for as little as:$56 per month!
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.6
$2,789.99

80
318VLE
BELAIRE 318VLE - 7.5 HP 80 GALLON HORIZONTAL, 175 PSI, 230/1/60, 22.2 CFM, T39 PUMP, W/STARTER - 7.5 HP ELITE MODELS: TWO-STAGE
ELITE MODELS INCLUDE: AUTOMATIC TANK DRAIN, BELT GUARD AFTERCOOLER AND LOW OIL LEVEL SWITCH
Mfg. item #: 318VLE
IMC318VLE
lease to own for as little as:$64 per month!
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.6
$3,199.99

80
338HE
BELAIRE 338HE - 5 HP 80 GALLON HORIZONTAL, 175 PSI, 230/3/60, 16.6 CFM, T39 PUMP, 184 T FRAME MOTOR, W/STARTER - 5 HP ELITE MODELS: TWO-STAGE
ELITE MODELS INCLUDE: AUTOMATIC TANK DRAIN, BELT GUARD AFTERCOOLER AND LOW OIL LEVEL SWITCH
Mfg. item #: 338HE
IMC338HE
lease to own for as little as:$57 per month!
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.6
$2,849.99

80
338HLE
BELAIRE 338HLE - 7.5 HP 80 GALLON HORIZONTAL, 175 PSI, 230/3/60, 22.2 CFM, T39 PUMP, W/STARTER - 7.5 HP ELITE MODELS: TWO-STAGE
ELITE MODELS INCLUDE: AUTOMATIC TANK DRAIN, BELT GUARD AFTERCOOLER AND LOW OIL LEVEL SWITCH
Mfg. item #: 338HLE
IMC338HLE
lease to own for as little as:$64 per month!
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.6
$3,199.99

80
338VE
BELAIRE 338VE - 5 HP 80 GALLON VERTICAL, 175 PSI, 230/3/60, 16.6 CFM, T39 PUMP, 184 T FRAME MOTOR, W/STARTER - 5 HP ELITE MODELS: TWO-STAGE
ELITE MODELS INCLUDE: AUTOMATIC TANK DRAIN, BELT GUARD AFTERCOOLER AND LOW OIL LEVEL SWITCH
Mfg. item #: 338VE
IMC338VE
lease to own for as little as:$55 per month!
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.6
$2,769.99

80
338VLE
BELAIRE 338VLE - 7.5 HP 80 GALLON VERTICAL, 175 PSI, 230/3/60, 22.2 CFM, T39 PUMP, W/STARTER - 7.5 HP ELITE MODELS: TWO-STAGE
ELITE MODELS INCLUDE: AUTOMATIC TANK DRAIN, BELT GUARD AFTERCOOLER AND LOW OIL LEVEL SWITCH
Mfg. item #: 338VLE
IMC338VLE
lease to own for as little as:$64 per month!
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.6
$3,199.99

80
5312HE
DISCONTINUED REPLACED BY THE NEW IRON SERIES COMPRESSORS
Mfg. item #: 5312HE
IMC5312HE
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.11
Call for Price

3698
5312VE
DISCONTINUED REPLACED BY THE NEW IRON SERIES COMPRESSORS
Mfg. item #: 5312VE
IMC5312VE
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.11
Call for Price

3698
