Jet BGB Three Wheel Bench Belt Grinders


BGB-142 1X42 BELTGRINDER 3/4HP,115/230V jet 2 year warranty logo

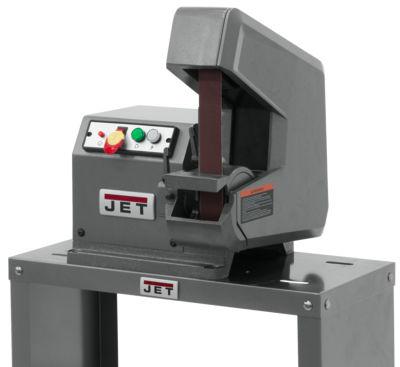

Model 577100 BGB-142 1X42 Belt Grinder Shown

at a glance
Specifications
WARRANTY
Accessories

BGB-142 1X42 BELTGRINDER 3/4HP,115/230V
BGB-248 2X48 BELT GRINDER 1HP, 115/230V
BGB-260-1 2X60 BELTGRINDER 115/230V,1PH
BGB-260-3 2X60 BELT GRINDER 230/460V,3P
have a 2 Year warranty

Cast metal frame / body
Integrated dust chute with high dust collection efficiency
Quick belt change with belt tensioner
Improved Safety Guard
Power / running Indicator light
Poly v-belt high efficiency to deliver power
Fit the JET metalworking dust collector stand 414800 with optional plate
Tool less Adjustment

Specifications
STOCK NUMBER	577100	577125	577150	577153
Model Number	BGB-142	BGB-248	BGB-260-1	BGB-260-3
Belt Diameter (In.)	1 x 42	2 x 48	2 x 60	2 x 60
Belt Speed (SFPM)	5,500	6,000	8,000	8,000
Contact Wheel Diameter (In.)	4-3/4 x 2	5 x 2	7 x 2	7 x 2
Electrics	3/4HP, 115/230V, 1Ph	1HP, 115/230V, 1Ph	1-1/2HP, 115/230V, 1Ph	3HP, 230/460V, 3Ph
Prewired	115V	115V	115V	230V
Overall Dimensions (D x W x H) (In.)	20-17/32 x 18-5/8 x 20-5/16	20-5/8 x 19 x 22-11/32	23-3/32 x 21 x 26-11/16	23-3/32 x 21 x 26-11/16
Net Weight (Lbs)	132	154	189	189
Shipping Weight (Lbs)	145	168	207	207

2 YEAR WARRANTY AND SERVICE
WMH Tool Group, Inc., warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these WMH Tool Group Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your Jet tools. For the name of an Authorized Service Center in your area call 1-800-274-6848.

no listed accessories

Compare

BGB-142, 1X42 BELT GRINDER 3/4HP,115/230V, MADE IN TAIWAN, SHIPS VIA LTL TRUCK FREIGHT & WEIGHT = 124 LBS

Mfg. item #: 577100

WMH577100

FREE expedited shipping Plus FREE residential, liftgate and call ahead service. ⁴

$1,509.00

265

Compare

^^BGB-248, 2X48 BELT GRINDER 1HP,

Mfg. item #: 577125

WMH577125

Call for freight quote on this item or we will confirm freight charges before shipping.¹

Call for Price

587

Compare

NLA - BGB-260-1, 2X60 BELT GRINDER 115/230V,1PH

Mfg. item #: 577150

WMH577150

Call for freight quote on this item or we will confirm freight charges before shipping.¹

$1.00

265

Compare

BGB-260-3, 2X60 BELT GRINDER 230/460V,3PH, MADE IN TAIWAN, SHIPS VIA LTL TRUCK FREIGHT & WEIGHT = 168 LBS

Mfg. item #: 577153

WMH577153

FREE expedited shipping Plus FREE residential, liftgate and call ahead service. ⁴

$1,845.00

265
