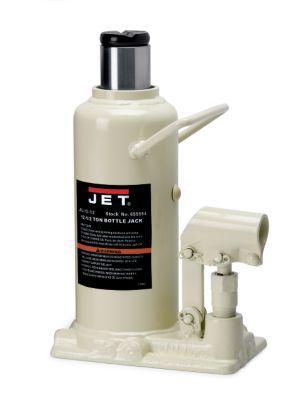

Jet JBJ-12, 12 Ton Hydraulic Bottle Jack


The Jet JBJ-12, 12 Ton Hydraulic Bottle Jac
has a 2 Year warranty

  • Robotically welded base and cylinders to assure strength and eliminate leaks
  • Chromed pump piston and ram for added rust resistance
  • Works in upright, angle, or horizontal positions to accommodate numerous applications
  • Carrying handle welded to body of bottle jack on 12 through 22 ton models
  • Pump handle included on all models
  • Complies with ANSI/ASME PALD-1 and B30.1 standards
Detailed Specifications
Part Number 655554
Base Dimensions 6 1/2 x 4 1/8 inch
Brand Jet
Capacity 12 ton
Head screw 3 1/8 inch
Height 13.5 inch
Length 7.5 inch
Lift N/A
Maximum Height 18 1/2 inch
Minimum Height 9 1/2 inch
Model Number JBJ-12
Net Weight 19.2 pound
Piston Height 5 7/8 inch
Saddle 1 5/8 inch
Web Description JBJ-12, 12 Ton Hydraulic Bottle Jac
Width 5 inch
There are no listed accessories.

More Informationshow more
655554
JBJ-12, 12 TON HYDRAULIC BOTTLE JACK
Mfg. item #: 655554
WMH655554
$11.95 Shipping on all JET, Powermatic, Wilton and Performax orders less that $199.95.1019
$86.38
