JET JWBS-14DXPRO \' 14" Deluxe Pro Bandsa

710116K Bandsaw  warranty logo 5 years

Stock Number: 710116K

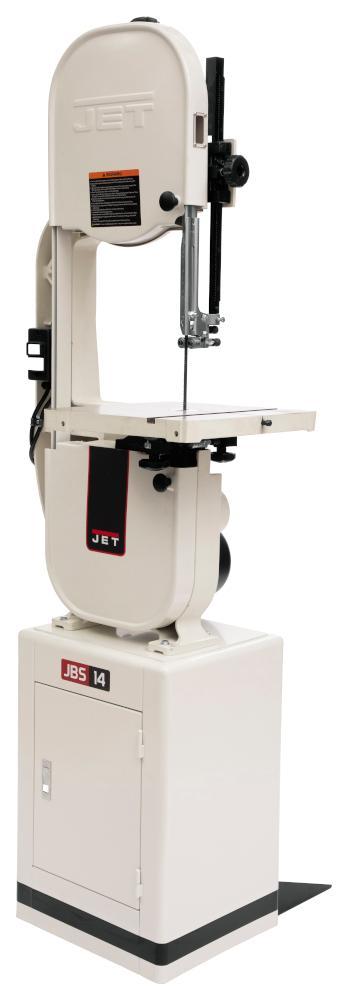

The all-new JWBS-14DXPRO 14 inch Deluxe Bandsaw from JET (shown here with optional fence) has been fully redesigned to meet the needs of today's most demanding woodworkers. Gone are the days of adding a riser block; this 14 inch bandsaw comes with a massive cast iron frame for increased power that makes it ready to meet all resaw expectations head-on. Couple this incredible feature with a new high tension spring design and many more amazing features, and you have a bandsaw that will last for years to come. Put a new JET 14 inch Bandsaw in your shop and you'll know that JET tools are Built Better to Build Better.

  • Built-in 12" resaw capacity for cutting larger pieces of wood
  • 2 Speed poly-v belt drive system
  • Upper and lower cast iron frame for increased strength and rigidity
  • Easy to view blade tracking window
  • Blade guide post with rack and pinion adjustment
  • Upper and lower ball bearing guides reduce friction for longer blade life
  • Quick release blade tension for convenience
  • Enclosed stand with storage shelf and easy access door
  • Built-in retractable blade guard moves up and down from 0-12” resaw
  • High tension spring design allows for greater blade tensioning



Part Number 710116K
Cutting Capacity Width 13-1/2 inch
Cutting Capacity Height 12  inch
Minimum Saw Blade Width 1/8 inch
Maximum Saw Blade Width 3/4 inch
Blade Speed 1500 / 3000 SFPM
Blade Length 105  inch
Table Dimension (LxW) 15 X 15 inch
Table Tilt 10 degree left, 45 degree right
Table Height From Floor 43-1/2 inch
Dust Port Outer Diameter 4 inch
Dust Collection Minimum CFM 300 cu.ft/min
Stand Type Closed
Wheel Diameter 14 inch
Motor Power 1-1/4 inch HP
Motor Voltage 115 / 230 V
Prewired Voltage 115 V
Motor Phase 1 Ph
Model Number JWBS-14DXPRO
Brand Jet
Height 77 inch
Width 28 inch
Length 29 inch
Net Weight 247 pound



warranty logo 5 years

5 YEARS WARRANTY AND SERVICE

WMH Tool Group, Inc., warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these WMH Tool Group Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your Jet tools. For the name of an Authorized Service Center in your area call 1-800-274-6848.



JET® BANDSAWS and Accessories
710116K JWBS-14DXPRO 14 inch Deluxe Bandsaw, 1.25HP 1PH 115/230V
708718R Rip Fence with Resaw for 14 inch Bandsaws
708716 Miter Gauge for 14 inch Bandsaws
708719 Blade Block Set for 14 inch Bandsaws
708127 Blade Bearing Guides, Carter-Style for 14 inch Bandsaws
708118 Universal Mobile Base
100025A Replacement Wheel Tire for the JET JWBS-14DXPRO WoodWorking Bandsaw ** Add $15.00 to Shipping for Expidated Ship[ping

s-h alt

Click here for Bandsaw Blades - We have been manufacturing Since 1926!

More Informationshow more
710116K
JWBS-14DXPRO, 14 DELUXE PRO BANDSAW KIT
Mfg. item #: 710116K
WMH710116K
Limited time! FREE SHIPPING, FREE TAILGATE & RESIDENTIAL DELIVERIES on this and other JET, POWERMATIC, WILTON and PERFORMAX products ordered together.1020
$1,070.79

20
More Informationshow more
708718R
Mfg. item #: 708718R
WMH708718R
$11.95 Shipping on all JET, Powermatic, Wilton and Performax orders less that $199.95. Combine products to meet the minimum order requirement for Free Shipping.1019
$139.95

325
More Informationshow more
708716
Mfg. item #: 708716
WMH708716
$11.95 Shipping on all JET, Powermatic, Wilton and Performax orders less that $199.95. Combine products to meet the minimum order requirement for Free Shipping.1019
$53.51

20
More Informationshow more
708719
Mfg. item #: 708719
WMH708719
$11.95 Shipping on all JET, Powermatic, Wilton and Performax orders less that $199.95. Combine products to meet the minimum order requirement for Free Shipping.1019
NEW ITEM
$31.00

670   3
More Informationshow more
708127
Mfg. item #: 708127
WMH708127
$11.95 Shipping on all JET, Powermatic, Wilton and Performax orders less that $199.95. Combine products to meet the minimum order requirement for Free Shipping.1019
$161.56

20   1
More Informationshow more
708118
Mfg. item #: 708118
WMH708118
$11.95 Shipping on all JET, Powermatic, Wilton and Performax orders less that $199.95. Combine products to meet the minimum order requirement for Free Shipping.1019
$101.15

20   1
More Informationshow more
100025A
REPLACEMENT WHEEL TIRE FOR THE JET JWBS-14DXPRO WOODWORKING BANDSAW ** ADD $15.00 TO SHIPPING FOR EXPIDATED SHIP[PING
Mfg. item #: 100025A
WMH100025A
$11.95 Shipping on all JET, Powermatic, Wilton and Performax orders less that $199.95. Combine products to meet the minimum order requirement for Free Shipping.1019
$26.95

937   3
