Model 410 Shaper/Sander

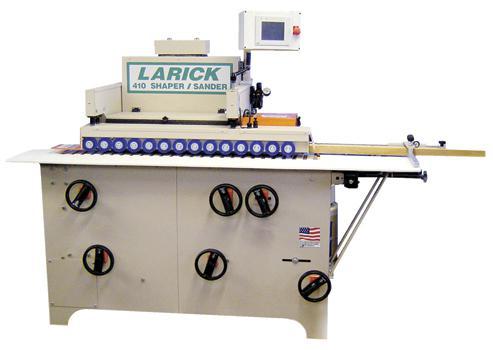

Designed and manufactured to give years of dependable service, the Larick 410 will shape and sand a wide variety of workpieces. Features include a 6 inch wide feed chain with four staggered rows of hold down tires; front adjusting handwheels with digital readouts for horizontal and vertical shaper and sander positions; AC inverter controlled variable speed for shaper, sanders, and feed featuring digital readouts for speed and load; floating heads are optional which allow shaping and sanding of arched panels. The user friendly design makes setup and profile changeovers quick and easy.

Larick 410 Shaper/Sander
Shaper Motor:	7.5 HP Belt Driven
Shaper Spindle Speed:	4000-7000 rpm
Shaper Spindle:	1-Â¼" Dia.
Sander Motors:	1.5 HP Direct Drive
Sander Spindle Speed:	400-1800 rpm
Sander Spindles:	1" Dia. by 4" Tall
Voltage:	208-240V 3ph, 30A 208-240V 1ph, 40A 440V 3ph, 15A
Conveyor:	6" Wide, 4 rows of tires
Vertical Adjustment:	Yes, with digital counters
Horizontal Adjustment:	Yes, with digital counters
Sanding Wheel Tilt:	60Âº Forward; 40Âº Back
Fence:	5 adjustable stops
Table Height:	36 inches
Size:	75" x 36" x 54"
Weight:	1325 lbs

s-h alt

CONTROL UNIT

AC inverter controlled variable speed for Shaper, Sanders, and Feed.
Keypads show RPM and Load for each motor.
Shaper brake is standard for safer operation.
Controls are angled for a better view.
208-230 or 460 volt/3PH/50-60 HZ

SHAPER STATION & FENCE

7-1/2 HP Shaper Motor
Variable speed from 4000 to 7000 RPM
Horizontal & Vertical adj. with digital position indicators.
1-1/4" spindle dia., 4" to 7" dia. cutter capacity

Optional

5 adjustable preset fence positions
"Chipbreaker" fence almost eliminates splintering without a messy, costly, 2nd hogging shaper.
Push bar to feed arched panels squarely

s-h alt

SANDING STATIONS

Two sanding stations with 1" counter rotating spindles
2 HP motors, 400-1800 RPM variable speed
Each station tilts forward 60 deg. and back 40 deg.
Horizontal and vertical adj. with digital position indicators
Air jet cleaning/cooling devices at each station
Will accommodate up to 9" diameter sanding wheels

CONVEYOR SYSTEM

6 inch wide heavy duty track with 4 staggered rows of holddown tires for part stability
3/4 HP feed motor, 0 to 20 FPM
14-1/2" wide table for product support
Handles workpieces up to 1-3/4" thick

s-h alt

Models
410FLT	MODEL 410 SHAPER/SANDER, 208-240V, 3PH, 56-60HZ, floating spindles, S/N xxx
410460	460 Volt Option for Model 410 Shaper/Sander

Accessories
V**	25" long strip of velcro; specify width $3.50 per inch of width
OR	O-RING, specify diameter
VD	8 Inch Disc of Stretchable Velcro
5J***	Rub Collar, 3.25" OD, specify bore: (3/4", 1", or 1-1/4")
6J***	Rub Collar, 4 inch OD, specify bore: (3/4", 1", or 1-1/4")
RV	Re-Velcro Sanding Wheel
AS100	P100 Stretch Abrasive Sheet
AS120	P120 Sheet of Stretch Abrasive
AS150	P150 Stretch Abrasive Sheets
AS180	P180 Sheet of Stretch Abrasive
AS240	P240 Sheet of Stretchable Abrasive
AS80	P80 Stretch Abrasive Sheet
VS	25x36 sheet stretchable velcro
RP	Re-Profile Sanding Wheel
PSW1	Raised Panel Sanding Whl,3/4 bore..3.25" rub collar,
PSW2	Raised Panel Sanding Wheel, 1.00 Bore..3.25" rub collar
PSW3	Raised Panel Sanding Wheel 1.25 Bore..3.25" rub collar
SW1	Profile Sanding Wheel, 3/4 bore.. Tilt;
SW2	Profile Sanding Wheel, 1in bore.. tilt;
SW3	Profile Sanding Wheel, 1.25 bore.. tilt;

Larick Model 410 Shaper / Sander
