National Sheet Metal Bench Brakes

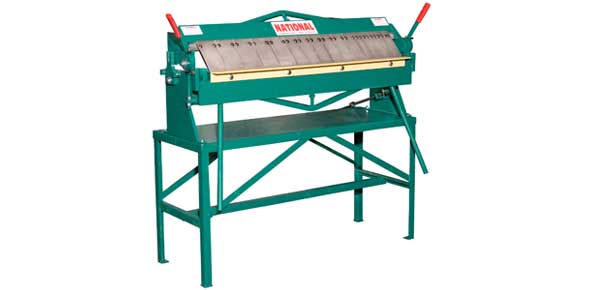

bench brake U4816


Lifetime Warranty

Simplicity of design allows these brakes to work in the most direct fashion. Easy to set up and operate. Body sections are welded steel plates, with heavy truss rods and braces for longer life and greater strength. These brakes are standard with extension handles, apron stop for repeat bends, and replaceable bushings at points of wear

Specifications
Model U4816 S4816 NS48
Capacity
(Yield Strength 30,000 lbs. @ rated capacity)
Mild Steel 16 Gauge
1.6mm
Stainless 20 Gauge
.9mm
Mild Steel 16 Gauge
1.6mm
Stainless 20 Gauge
.9mm
Stand for
U4816 and S4816
Maximum Lift of Beam 1-1/4in/32mm 1-1/4in/32mm
Finger Width 2, 3, 4 in
51mm 76mm 102mm
Straight Brake (No Fingers)
Maximum Depth of Box 4in/102mm
Bending Length 48-1/4in/1226mm 48-1/4in/1226mm
Shipping Weight 500lbs/227kgs 470lbs/213kgs 100lbs/45kgs
Floor Space     54x19x27-1/4in
1372x483x692mm



Lifetime Warranty On Breakage (Head, Apron, Side Panels)
3 Year Warranty On All Other Parts




No accessories listed

U4816
48IN 16 GAUGE BOX AND PAN BRAKESWITH 2IN, 3IN, AND 4IN FINGERS, TWO EXTENSION HANDLES, AND APRON STOP FOR REPEAT BENDS.** MADE IN THE USA / SHIPPING WT. 458 LBS
Mfg. item #: U4816
NTLU4816
Call for freight quote on this item or we will confirm freight charges before shipping.1
$1,615.00

710
S4816
48IN 16 GAUGE HEAVY DUTY BRAKE , TWO EXTENSION HANDLES, APRON STOP FOR REPEAT BENDS.** MADE IN THE USA / SHIPPING WT. 425 LBS
Mfg. item #: S4816
NTLS4816
Call for freight quote on this item or we will confirm freight charges before shipping.1
$1,490.84

710
NS48
U4816 AND S4816 STAND** MADE IN THE USA / SHIPPING WT. 78 LBS
Mfg. item #: NS48
NTLNS48
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$283.65

710
