ICS CWS-200 Chain Wall Saw

CWS-200
The Best of Both Worlds

The CWS-200 Chain Wall Saw combines ICS Diamond Chain Technology (DCT™) with a mechanized, track-mounted, Hydraulic powered design for Professional Sawing & Drilling Contractors, allowing deep cutting without overcuts and less overall effort than other methods.
The CWS-200 is compact and lightweight (only 75 lbs), and provides a one-tool approach to completing a full opening with square corners.

The ability to mount the system to industry standard 360 track, combined with the capabilities of a chainsaw offers the advantages of increased cutting speed, increased chain life, improved ergonomics and significantly reduced operator effort.

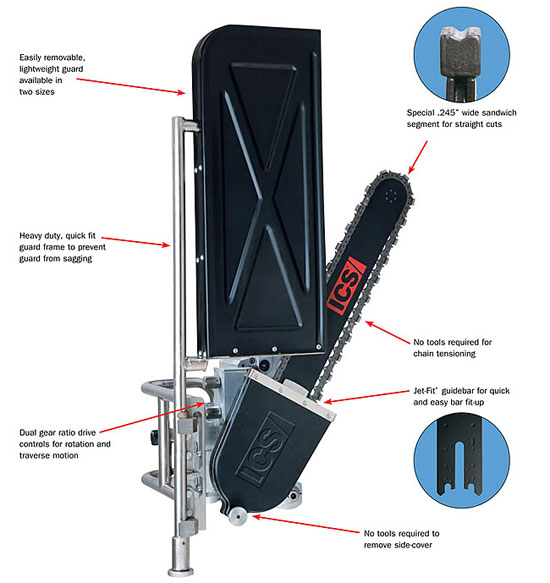

Features

Mounts to 360 industry standard track
Specialized sandwich segment chain
Jet-Fit^® Guidebar

Benefits

Confined spaces
Deep corner cuts
Operator safety
Improved time to complete job
No blade changes in deep cuts
Easier/cleaner core removal
Accuracy of cut vs. hand-held
Less operator effort
Chains lighter than blades
Easier mobility on & off the jobsite
Simplified set-up and attachment

CWS-200 PRODUCT SPECIFICATIONS
BASE MACHINE W/OUT BAR, CHAIN, & GUARD	75 lbs (34 kg)
12" GUARD	9 lbs (4 kg)
18" GUARD	11 lbs (5 kg)
HYDRAULIC SUPPLY	25 gpm (95 lpm) @ 2,500 psi (172.5 bar)
TORQUE	284 in-lbs (32 Nm)
HORSEPOWER	36.5 hp (27.2 kW)
WATER SUPPLY	Minimum 20 psi (1.5 bar)
OPERATING SPEED	8,100 rpm (avg. free running)
