William & Hussey Model 206 Molder

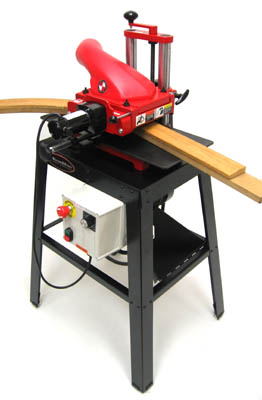

The W&H Model 206 with vari-feed and multipass combination provides the operator much more versatility while increasing capacity. In addition, the new guide system makes the machine more user friendly for our customers. Like the original model, the 206 is capable of producing straight, round top moldings as is, add the elliptical jig for all your elliptical molding needs!

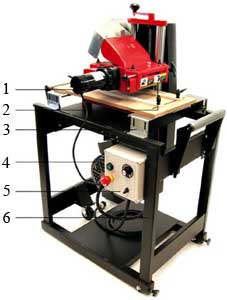

  1. Variable Feed Motor
  2. Built in Multi-Pass System
  3. GS1 Guide System
  4. Industrial Strength 2 HP Motor
  5. Deluxe Variable Feed Control w/Magnetic Dropout Switch and Cords
  6. Steel Welded Stand

s-h alt

Applications

Our customers have revealed to us the machines range of versatility. From the trimming of a multimillion dollar home, to the making of game calls, to picture frames, to custom redwood planters. The variety of tasks it is capable of seems inexhaustible.

s-h alt

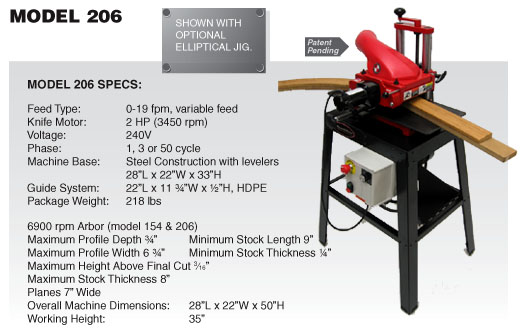

Specifications:

Package Includes:

  • 2 HP Motor (Mfg warranty of motor)
  • 7000 RPM Arbor
  • Adjustable Feed Rate 1-19
  • FPM
  • Height Above Final Cut: 3/16"
  • Max Profile Depths:3/4"
  • Max profile width: 6 3/4"
  • Planes 7" wide
  • Minimum Stock Length: 9"
  • Minimum Stock Thickness: 1/4"
  • Maximum Stock Thickness: 8"
  • Working Height: 31"
  • Overall Height: 45"
  • Overall Width: 23"
  • Overall Length: 33"
  • Pkg. Weight: Appox 242lbs
  • Molder
  • Belt & Pulley
  • Stand
  • Dust Hood
  • GS1 Guide System
  • 2 HP Motor
  • Variable Feed Motor
  • Deluxe Variable
  • Feed Switch w/Cords
  • Table Guides

Williams & Hussey Model 206 Planer / Molder
206-1PH-208V-K Model 206, Single Phase, 208V (variable feed; 0-19 fpm)
206-1PH-240V-K Model 206, Single Phase, 240V (variable feed; 0-19 fpm)
206-3PH-240V-K Model 206, Three Phase, 208V/240V,460V (variable feed; 0-19 fpm)
EJ-92 Elliptical Jig
MP-06-YELLOW-K Multi-Pass Kit Made with yellow roller
MP-06-GREEN-K Multi-Pass Kit Made with green roller
P-123-K Feed Roll Kit (2 yellow rolls, 4 axles, thread locker)
P-160-K Feed Roll Kit (1 yellow, 1 green roll, 4 axles, thread locker)
GS-2-1 Guide System, Textured, 9/32" Slots ** (older style molder bases require GS-02 hardware kit)
GS-02 Hardware and instructions to drill holes in molder bed
54-400 Rockler Mobile Base
54-402 Stationery Machine Base
EJ-92 Elliptical Jig
VF-104-K Vari-Feed Retro with 240V, AC/DC Control
54-404 V-Belt, A, Powertwist, 45 inch (For new machine base)
54-406 V-Belt, A, Powertwist, 47 inch -  For machine bases prior to June, 2010



Warranty

The W&H has been a proven design since 1926. it will mold and plane with great precision. Your W&H is warranted for 7 years. in addition, as long as you own it, competent help with its care and operation is as close as your phone.
