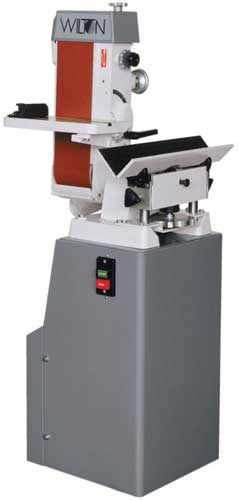

Wilton 4500 Combination 6" Belt Sander a

  • Contour finishing, mitering, flat finishing just to name a few applications
  • Will handle virtually all the finishing operations in a production line
  • Adjustable heavy duty, cast iron, removeable platen
  • Removable upper guard for contour finishing
  • Variable-position locks; belt head adjusts vertically, horizontally and in-between
  • Large cast iron slotted table
  • Adjustable dust deflector and dust chute CHAMFERING
  • Easily adjustable chamfering machine manages additional finishing jobs such as: beveling, and deburring on flats and squares of ferrous and non-ferrous materials
  • Precision chamfer, bevel or deburr edges easily
  • Chamfer angles from 15° to 45°
  • Easily adjustable depth of cut
  • The cutter head has 8 easy to change inserts, and combined with an adjustable depth of cut and angle of cut capacity, can deliver accurate finishes on a repetitive basis6" BELT SANDER
  • Miter gauge
  • Heavy-duty, one piece stand CHAMFERING
  • 3cutter head with 8 replaceable inserts
  • Cast iron V-table
  • Heavy-duty, one piece steel stand
Part Number 4500
Belt Size 6 x 48
Belt Speed 2850
Belt Table Tilt 45° Out, 20° In
Bevel Angle 15° 45°
Number of Inserts for Cutter Head 3" milling cutter head with 8 replaceable carbide inserts
Motor 4500 1-1/2HP, 115/230V, 1Ph, Prewired 115V
Overall Dimensions 25-1/2 x 19 x 57-1/2 (Width when belt is in horizontal position)
Height 50 inch
Width 23 inch
Length 30 inch
Net Weight 321 pound
There are no further details.
There are no further specifications.
There is no further information.
There are no listed accessories.
