Baileigh Sliding and CNC Table Saws



sliding table saw sliding table saw cnc CNC Table Saw STS-16120-CNC
Sliding Table Saw STS-14120
Sliding Panel Saw STS-14120-DRO
CNC Table Saw STS-14120-CNC CNC Table Saw STS-16120-CNC



Sliding Table Saw STS-14120

Sliding Table Saw STS-14120

1007692

Made in Taiwan

When Baileigh Industrial does something we do it right, the STS-14120 is no exception.  This class leading sliding table saw has all the features the most discerning shop could want.  The STS-14120 comes standard with a 12 inch blade but will take a 14 inch blade without modification and turns on a 1 inch arbor.  The 7.5 hp 220 volt three phase motor has three speeds in which it will cut, by moving the belts.  The rpm range is between 3000 and 5000 rpm with a digital readout.  A 1 hp scoring blade is also standard and spins at 8000 rpm to ensure a crisp, clean cut.

The STS-14120 has a 15 x 125 inch sliding table.  The fully extruded table slides on four precision shafts for the greatest accuracy possible.  The blade tilting uses a manual hand wheel system with digital readout for telling the degrees.  All fences are included as well as a deluxe saw guard with dust port are standard.  There is also a 4 inch main dust channel to keep the shop clean.

Specifications
Model STS-14120
Dust Collection Port 3 and 5 inch
Number of Outlets 2
Table Size (Length) 126 inch
Table Size (Width) 15 inch
Rpm 3000/4000/5000
Max Stock Width 51 inch
Table Saw Blade Diameter 12 inch
Table Saw Arbor 1 inch
Table Saw Cutting Height at 90 degrees 4.125 inch
Table Saw Cutting Height at 45 degrees 2.75 inch
Table Saw Scoring Blade RPM 8000
Table Saw Scoring Blade Diameter 4.5 inch
Table Saw Scoring Blade Arbor 7/8 inch
Power 220V Three Phase
Length 132 inch
Width 52 inch
Height 40 inch
Horse Power 7.5
Weight (lbs) 2250

specifications subject to change without notice.

Sliding Panel Saw STS-14120-DRO

Sliding Panel Saw STS-14120-DRO

1007694

Made in Taiwan

The STS-14120-DRO sliding panel saw is essentially the same class leading model as our STS-14120 but includes user friendly digital readout on the rip fence as well as two digital readouts on the crosscut fence.  These two features alone will increase productivity of your shop.  The STS-14120-DRO comes standard with a 12 inch blade but will take a 14 inch blade without modification and turns on a 1 inch arbor.  The 7.5 hp 220 volt three phase motor has three speeds in which it will cut, by moving the belts.  The rpm range is between 3000 and 5000 rpm with a digital readout.  A 1 hp scoring blade is also standard and spins at 8000 rpm to ensure a crisp, clean cut.

Like the STS-14120 the STS-14120-DRO has a 15 x 125 inch sliding table with a 20 x 40 inch cast iron fixed lower table.  The fully extruded table slides on four precision shafts for the greatest accuracy possible.  The blade tilting uses a manual hand wheel system with digital readout for telling the degrees.  All fences are included as well as a deluxe saw guard with dust port are standard.  There is also a 4 inch main dust channel to keep the shop clean.

Contact a Baileigh Industrial repetitive form more information on the STS-14120-DRO sliding panel saw.

Specifications
Model STS-14120-DRO
Dust Collection Port 3 and 5 inch
Number of Outlets 2
Table Size (Length) 126 inch
Table Size (Width) 15 inch
Rpm 3000/4000/5000
Max Stock Width 51 inch
Table Saw Blade Diameter 14 inch
Table Saw Arbor 1 inch
Table Saw Cutting Height at 90 degree 4.125 inch
Table Saw Cutting Height at 45 degree 2.75 inch
Table Saw Scoring Blade RPM 8000
Table Saw Scoring Blade Diameter 4.5 inch
Table Saw Scoring Blade Arbor 7/8 inch
Power 220V Three Phase
Length 132 inch
Width 52 inch
Height 40 inch
Horse Power 7.5
Weight (lbs) 225 inch



CNC Table Saw STS-14120-CNC

CNC Table Saw STS-14120-CNC

1007693

Made in Taiwan

The STS-14120-CNC table saw from Baileigh Industrial is based from our other sliding table saw designs, but adds a CNC twist.  The CNC function really helps with accuracy and efficiency of any project.  The 5.7 inch CNC touchscreen control has a 300 profile memory capacity.  It controls the cutting width, blade tilting, and main saw blade height. The scoring blade height is also motorized.

This class leading sliding table saw has all the features the most discerning shop could want.  The STS-14120-CNC comes standard with a 12 inch blade but will take a 14” blade without modification and turns on a 1 inch arbor.  The 7.5 hp 220 volt three phase motor has four speeds in which it will cut, by moving the belts.  The rpm range is between 3000 and 6000 rpm with a digital readout.  A 1 hp scoring blade is also standard and spins at 8000 rpm to ensure a crisp, clean cut.

The STS-14120-CNC has a 15 x 125 inch sliding table.  The fully extruded table slides on four precision shafts for the greatest accuracy smoothest slide possible.  All fences are included as well as a deluxe saw guard with dust port are standard.  There is also a 4 inch main dust channel to keep the shop clean.  A tool frame and safety bar round out this great package.

Specifications
Model STS-14120-CNC
Dust Collection Port 3 and 5 inch
Number of Outlets 2
Table Size (Length) 126 inch
Table Size (Width) 15 inch
Rpm 3000/4000/5000/6000
Max Stock Width 51 inch
Table Saw Blade Diameter 12 inch
Table Saw Cutting Height at 90 degree 3.93 inch
Table Saw Cutting Height at 45 degree 2.75 inch
Table Saw Scoring Blade RPM 8000
Table Saw Scoring Blade Diameter 4.5 inch
Table Saw Scoring Blade Arbor 7/8 inch
Power 220V Three Phase
Length 132 inch
Width 52 inch
Height 40 inch
Horse Power 7.5
Weight (lbs) 2250

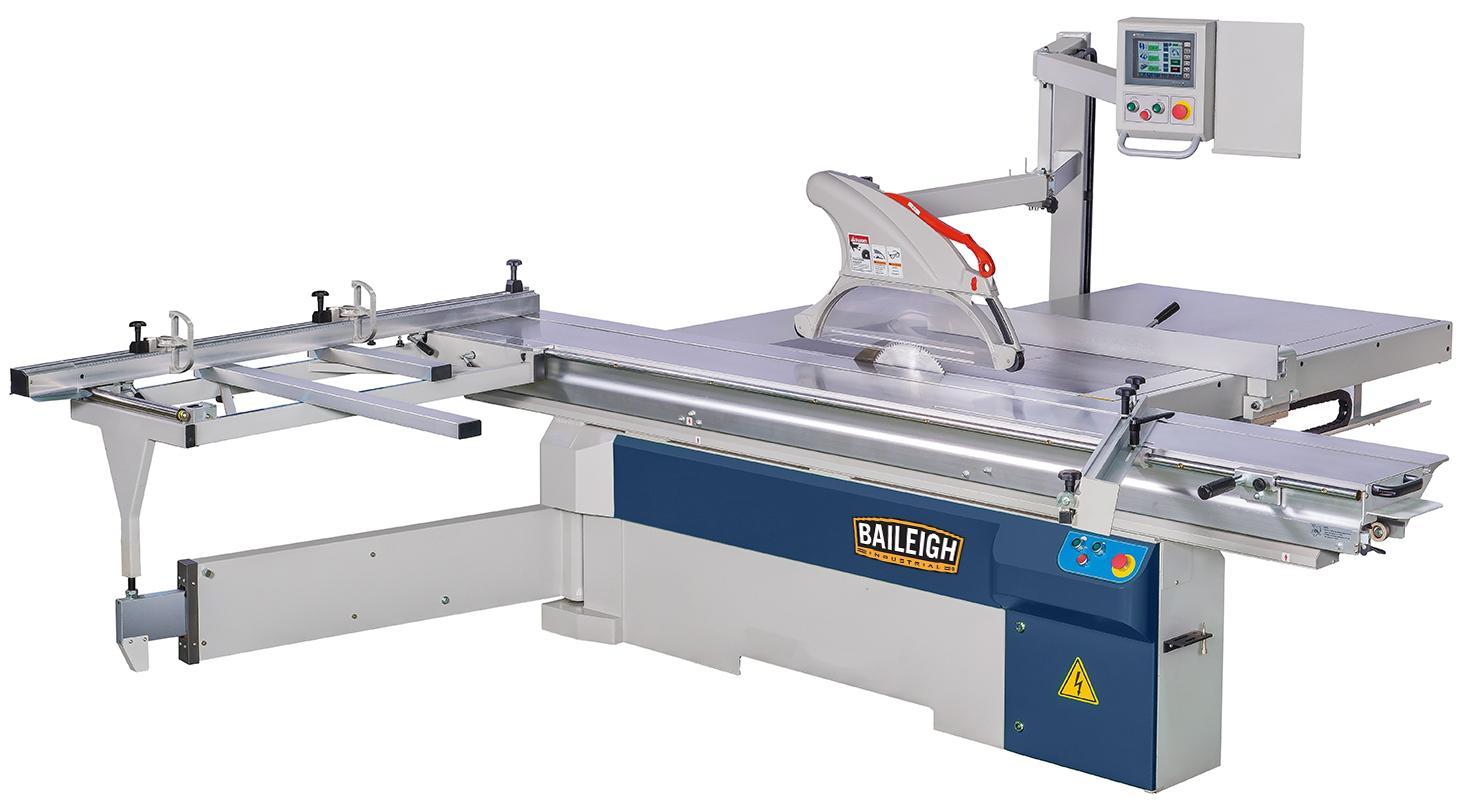

CNC Table Saw STS-16120-CNC

CNC Table Saw STS-16120-CNC

Click here to download Manual 1

Click here to download Manual 2

Click here to download Manual 3

This CNC table saw lets you store cut programs to ensure accuracy on high-volume, 3-shift schedules. With the sliding table, you need only one operator to cut 10-foot panels.

  • 7.5 hp motor with 4 speeds: 3,000, 4,000, 5,000, and 6,000 rpm.
  • Set the RPM by manually moving the belts to different gears.
  • Digital readout (DRO) shows the blade speed to help with repeatability.
  • Comes standard with a 12” blade, but accepts up to a huge 16” blade.
  • Table wood saw turns on a 1” arbor.
  • Runs on 220-volt 3-phase power.
  • 1 hp scoring blade spins at 8,000 rpm to ensure a crisp, clean cut. No need to spend extra time on sanding afterwards.

CNC System:

  • 5.7” touchscreen control panel has a 300 program memory capacity.
  • You can program the cutting width, blade tilt, and blade height of the main saw, as well as the scoring blade height.
  • Save cut settings for a given application or schedule (for example, “Monday Cuts”), so they’re the same each time.
  • Simply choose your desired cut program, and the system will take the table to the right settings. Then, manually push the wood towards the blade.

This CNC sliding table saw is also available in 2 non-CNC versions: STS-14120-DRO (with a digital readout) and STS-14120 (without one).

Fences, Table, and Trunnion:

  • Includes fences for ripping, crosscut, and angled cuts.
  • Servo motor moves the rip fence into place as programmed. No need to read scales. Just dial it in.
  • 2-position rip fence can lift out of the way for crosscutting.
  • Cast iron frame backs the rip fence, keeping it parallel to the saw.
  • Crosscut fence offers 2 DROs (one for the main gantry fence and one for the extension) for repeatability.
  • Angle fence is scaled for precision.
  • Heavy cast steel trunnion has boxed (not dovetailed) ways for extra rigidity.
  • Enormous 15” x 125” sliding table is made of anodized, fully-extruded aluminum, so it’ll stay true and square.
  • Table slides on 4 precision shafts made of polished steel for the smoothest slide possible.
  • Fully welded base made of 12-gauge steel reduces vibrations, maintains alignment, and keeps cuts accurate.
  • Wiper system in the shafts eliminates build-up from sawdust and grease.
  • You can slide a whole sheet of 4’ x 8’ material so easily you’d never think there’s weight on it.
  • Load lock prevents the table from budging when you’re setting down large sheets of wood.
  • 4” main dust port that you can hook up to an extraction system and keep your shop clean.

Safety, Parts, and Warranty:

  • Includes safety blade guards for straight or angled cuts that you can switch in seconds.
  • We typically keep replacement parts in stock for quick shipping.
  • Covered by a 1-year parts warranty.
  • Our team of customer reps—all with hands-on machine experience—are here to provide lifetime technical support by phone.

Recommended for: Industrial production, especially cabinetry manufacturers, lumber liquidators, and railroad yards.

Specifications
Item Number STS-16120-CNC
Shipping Weight 2810lbs
Table Size (Length) 126"
Table Size (Width) 15"
RPM 3000/4000/5000/6000
Belt/Blade Size 16" Max diameter(** When using a 16" blade, the saw blade will be 1" higher than table when in the lowest position)
Max Stock Width 51"
Table Saw Blade Diameter 12"
Table Saw Arbor 1"
Table Saw Cutting Height @ 90° 5" with 16" blade
Table Saw Cutting Height @ 45° 3.25" with a 16" blade
Table Saw Scoring Blade RPM 8000
Table Saw Scoring Blade Diameter 4.5"
Table Saw Scoring Blade Arbor 7/8"
Power 220V Three Phase
Horse Power 7.5
Weight (lbs) 2500
Shipping Dimensions (Inches) 91x53x42, 80x16x17, 131x20x17



There are no listed accessories.

STS-14120
220V THREE PHASE 7.5 HP 14 SLIDING TABLE SAW, 15 X 125 SLIDING TABLE,
CALL OR ADD TO CART FOR OUR BROTHER-IN-LAW DEAL ON THIS ITEM
Mfg. item #: STS-14120
BAISTS-14120
lease to own for as little as:$203 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$10,445.25

6
STS-14120-DRO
SALE - 220V 3PH 7.5 HP 14 SLIDING TABLE SAW WITH DRO FOR RIP AND CROSS CUT FENCES
LIMITED QUANTITY - AT THIS PRICECALL 800-458-3687 X1 FOR AVAILABILITY, LIMITED TIME OFFER
Mfg. item #: STS-14120-DRO
BAISTS-14120{01
lease to own for as little as:$274 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$13,691.26

6
STS-14120-CNC
220V 3 PHASE 7.5 HP 14 CNC SLIDING TABLE SAW
CALL 800-458-3687 FOR A BROTHER-IN-LAW DEAL ON THIS ITEM
Mfg. item #: STS-14120-CNC
BAISTS-14120{00
lease to own for as little as:$414 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$20,684.22

849
STS-16120-CNC
220V 3 PHASE 7.5 HP 16 CNC SLIDING TABLE SAW
CALL OR ADD TO CART FOR OUR BROTHER-IN-LAW DEAL ON THIS ITEM
Mfg. item #: STS-16120-CNC
BAISTS-16120{00
lease to own for as little as:$404 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$21,560.25

6
