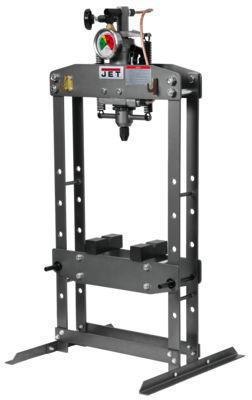

The Jet HP-5A, Hydraulic Press 5 Ton has a 2 Year warranty
-
HYDRAULIC SHOP PRESSES
-
For pressing, bending and straightening operations
-
Easy-to-use, hand-operated with pressure gauge for direct pressure readings
-
Tables raise and lower easily with use of hand crank on the 15-, 35- and 60-ton models
-
Side frames are open for inserting long material
-
Fast setup ram extension screw
-
Ram moves laterally for added versatility (15- and 35-ton models)
-
Two bed plates and pump handles
-
Straightness testing support uses centers or v-blocks on the 15-, 35- and 60-ton models
-
Auxiliary hand press (HP-60)
-
Two speed ram (HP-60)
|
Detailed Specifications
|
|
Part Number
|
331406
|
|
Brand
|
Jet
|
|
Capacity (Tons)
|
5
|
|
Height
|
13 inch
|
|
Lateral Movement (in.)
|
N/A
|
|
Length
|
60 inch
|
|
Model Number
|
HP-5A
|
|
Net Weight
|
192 pound
|
|
Overall Dimensions
|
23-1/2 x 26 x 51-1/2
|
|
Piston Stroke (in.)
|
4
|
|
Ram Diameter (in.)
|
1-3/4
|
|
Screw Stroke (in.)
|
3
|
|
Vertical Table Travel (in.)
|
15-3/4
|
|
Width
|
26 inch
|
|
Work Table Size (in.)
|
19 x 5-1/2
|

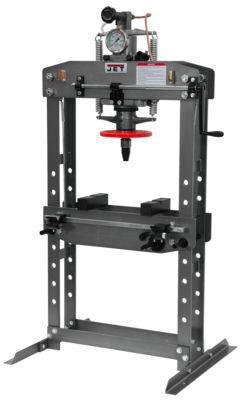

The Jet HP-15A, Hydraulic Press 15 Ton
has a 2 Year warranty
-
HYDRAULIC SHOP PRESSES
-
For pressing, bending and straightening operations
-
Easy-to-use, hand-operated with pressure gauge for direct pressure readings
-
Tables raise and lower easily with use of hand crank on the 15-, 35- and 60-ton models
-
Side frames are open for inserting long material
-
Fast setup ram extension screw
-
Ram moves laterally for added versatility (15- and 35-ton models)
-
Two bed plates and pump handles
-
Straightness testing support uses centers or v-blocks on the 15-, 35- and 60-ton models
-
Auxiliary hand press (HP-60)
-
Two speed ram (HP-60)
|
Detailed Specifications
|
|
Part Number
|
331416
|
|
Brand
|
Jet
|
|
Capacity (Tons)
|
15
|
|
Height
|
17.5 inch
|
|
Lateral Movement (in.)
|
10-3/16
|
|
Length
|
69 inch
|
|
Model Number
|
HP-15A
|
|
Net Weight
|
435 pound
|
|
Overall Dimensions
|
33-7/8 x 29-1/2 x 65-1/2
|
|
Piston Stroke (in.)
|
4-1/2
|
|
Ram Diameter (in.)
|
2-1/2
|
|
Screw Stroke (in.)
|
3-1/8
|
|
Vertical Table Travel (in.)
|
22-3/16
|
|
Width
|
35.5 inch
|
|
Work Table Size (in.)
|
24-3/4 x 7-1/2
|

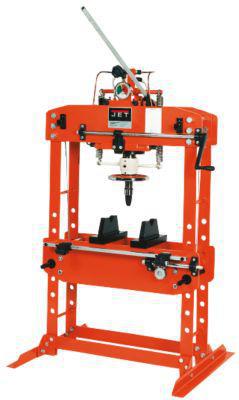

The Jet HP-35A, Hydraulic Press 35 Ton
has a 2 Year warranty
-
HYDRAULIC SHOP PRESSES
-
For pressing, bending and straightening operations
-
Easy-to-use, hand-operated with pressure gauge for direct pressure readings
-
Tables raise and lower easily with use of hand crank on the 15-, 35- and 60-ton models
-
Side frames are open for inserting long material
-
Fast setup ram extension screw
-
Ram moves laterally for added versatility (15- and 35-ton models)
-
Two bed plates and pump handles
-
Straightness testing support uses centers or v-blocks on the 15-, 35- and 60-ton models
-
Auxiliary hand press (HP-60)
-
Two speed ram (HP-60)
|
Detailed Specifications
|
|
Part Number
|
331431
|
|
Brand
|
Jet
|
|
Capacity (Tons)
|
35
|
|
Height
|
19.5 inch
|
|
Lateral Movement (in.)
|
15
|
|
Length
|
71 inch
|
|
Model Number
|
HP-35A
|
|
Net Weight
|
783 pound
|
|
Overall Dimensions
|
42-1/2 x 33-1/2 x 68-1/8
|
|
Piston Stroke (in.)
|
4-3/4
|
|
Ram Diameter (in.)
|
3
|
|
Screw Stroke (in.)
|
4
|
|
Vertical Table Travel (in.)
|
23-5/8
|
|
Width
|
71 inch
|
|
Work Table Size (in.)
|
31 x 10-3/8
|
|
2 YEAR WARRANTY AND SERVICE
WMH Tool Group, Inc., warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the
United States can give you quick service. In most cases, any of these WMH Tool Group Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform
routine maintenance and major repair on your Jet tools. For the name of an Authorized Service Center in your area call 1-800-274-6848.
|
At JET not only do we warranty every product we develop, but we ensure that our after sale service and support is number 1. Our customer rated 9 out of 10 Customer
Service, Technical Support, 40,000 plus unique parts in stock, and leading warranties guarantee we have the industrys most dependable service and support program.
If a JET tool needs service or repair, one of our 750 Authorized Service Centers located in all 50 states can assist you. In most cases Authorized Service Centers can
perform a warranty repair, assist in obtaining replacement parts, perform routine maintenance, and perform a major repair on your JET Tool. For the name and locationof an Authorized Service Center
in your area call 1 (800) 274-6848.
From here forward, look for our JET RED Assurance stamp. Whenyou see this logo you can rest assured that behind every product isdecades of Reliability, Expertise, and
Dependability.
