Larick 360 Sander

LARICK MACHINERY  USER FRIENDLY MACHINERY

360 Profile Sander

Click here to download Model 360 Manual

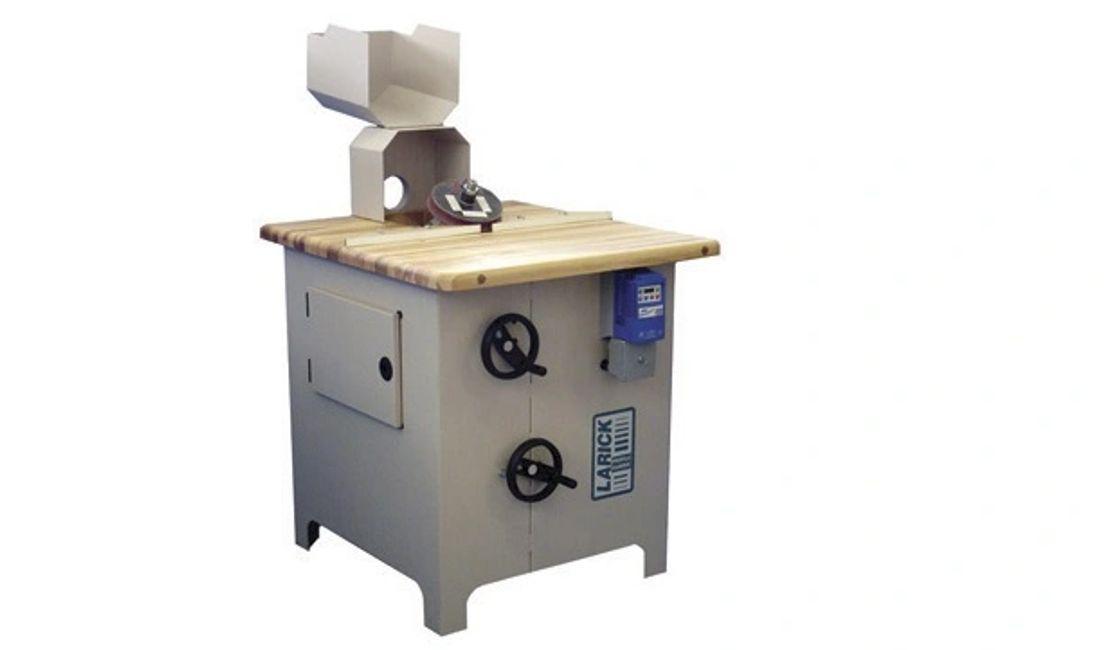

Model 360 Profile Sander

The key to successful profile sanding is a combination of machine versatility, use of the correct abrasive medium, and a little patience and understanding. The results are a remarkable increase in consistency, quality, and productivity. LARICKs line of profile sanders offers a variety of models to fit the diverse needs of our customers. In addition, we will help you understand the requirements, capabilities, and limitations of successful profile sanding systems. You provide the patience! The purchase of a Larick Profile Sander can result in substantial savings in labor; increased productivity, consistency, and quality; and the beginning of a mutually rewarding relationship between us.

In order to optimize profile sanding, most profiles should have the wheel tilted to minimize the depth the profile goes into the wheel, and to keep the abrasive as flat as possible on the wheel. Larick's family of 360s can tilt either forward or backward to achieve this. It also has a simple, stationary, rigid, but removable fence, and features both vertical and horizontal spindle adjustment from the front of the machine. Horizontal spindle adjustment allows the operator to quickly make fine adjustments of sanding pressure without moving the fence. Tilt changes are easily made utilizing a crank and easy to read scale. They use an AC inverter for variable speed on the direct drive motor. The inverter provides precise speed control with its display showing spindle RPM. The only difference between models is input voltage.

Model 360 Profile Sander Specifications
 Motor:  1.5 HP Direct Drive
 Voltage:  361: 115 or 208-240v / 1ph / 50-60hz
 362: 208-240v / 1 or 3ph / 50-60hz
 364: 460v / 3ph / 50-60hz
 Variable Speed:  AC Inverter 400-1800 rpm
 Arbor:  1in Dia. by 4in Tall
 Vertical Adjustment:  Yes
 Horizontal Adjustment:  Yes
 Wheel Tilt:  60 deg Forward; 40 degBack
 Fence:  Standard
 Table Height:  36 inch
 Size:  33 x 36 inch
 Weight:  375 lbs



ear Woodworkers,

Before establishing Larick Machinery, Inc. in 1988, I was an engineer for a medium sized cabinet company.  We had recently discovered a stretchable abrasive for profile sanding wheels which, to our surprise, WORKED!!  We knew there were thousands of others who could also benefit from this profile sanding system, so we designed a profile sander with every feature WE wanted if WE were setting it up and using it every day.  The result is the MODEL 360. It has a tilting spindle with a scale, variable speed, vertical AND horizontal adjustment--unique to Larick in this price range--which is one of its most beneficial features. It allows use of a simple, fixed fence for the initial setup, and provides the operator with a means of adjusting sanding pressure or compensating for wheel wear by simply turning a handwheel.

Larick's value priced MODEL 120 profile sander features variable speed and vertical adjustment. It is ideal for sanding arched or straight raised panels and for applications not requiring a tilting spindle. A fence is optional.

Larick also manufactures custom profiled sanding wheels to use on either our sanders or others.  We use a patented, stretchable, velcro backed abrasive which conforms to a profile as it is stretched around a formed wheel.  Available grits are 100, 120, 150, and 180. Our sanding wheels combine aggressive sanding with low cost to give exceptional value!

Great news for you is that labor savings alone can pay for a machine and, as a bonus, quality and consistency will improve significantly. A demonstration video showing features, setup, operation, and results is available. I feel we have developed the most versatile, user friendly profile sanders on the market at very competitive prices. Thank you for your time and interest in our products. We look forward to serving you in the near future.

Larry Schwarz, President,
Larick Machinery

Models
362 Model 362 Profile Sander 208-230V, 1or3 PH, 50-60HZ, S/N
364 Model 364 Profile Sander 460 volt, 3PH, 50-60 HZ, S/N
Accessories
V** 25" long strip of velcro; **specify width** $3.50 per inch of width
OR O-RING, **specify diameter**
VD 8 Inch Disc of Stretchable Velcro
5J*** Rub Collar, 3.25" OD, **specify bore**: (3/4", 1", or 1-1/4")
6J*** Rub Collar, 4 inch OD, **specify bore**: (3/4", 1", or 1-1/4")
RV Re-Velcro Sanding Wheel
AS100 P100 Stretch Abrasive Sheet
AS120 P120 Sheet of Stretch Abrasive
AS150 P150 Stretch Abrasive Sheets
AS180 P180 Sheet of Stretch Abrasive
AS240 P240 Sheet of Stretchable Abrasive
AS80 P80 Stretch Abrasive Sheet
VS 25x36 sheet stretchable velcro
RP Re-Profile Sanding Wheel
PSW1 Raised Panel Sanding Whl,3/4 bore..3.25" rub collar,
PSW2 Raised Panel Sanding Wheel, 1.00 Bore..3.25" rub collar
PSW3 Raised Panel Sanding Wheel 1.25 Bore..3.25" rub collar
SW1 Profile Sanding Wheel, 3/4 bore.. Tilt;
SW2 Profile Sanding Wheel, 1in bore.. tilt;
SW3 Profile Sanding Wheel, 1.25 bore.. tilt;
390JIG Feed Through Centering Jig Without Templates



362
MODEL 362 PROFILE SANDER 208-230V, 1OR3 PH, 50-60HZ, S/N
Mfg. item #: 362
LAR362
lease to own for as little as:$71 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$3,550.00

427
364
MODEL 364 PROFILE SANDER 460 VOLT, 3PH, 50-60 HZ, S/N
Mfg. item #: 364
LAR364
lease to own for as little as:$73 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$3,650.00

427
V**
25 LONG STRIP OF VELCRO; **SPECIFY WIDTH** $3.50 PER INCH OF WIDTH
Mfg. item #: V**
LARV**
FREE shipping when ordered with a machine from this manufacturer.20
$3.50

427
OR
Mfg. item #: OR
LAROR
FREE shipping when ordered with a machine from this manufacturer.20
$6.00

427
VD
Mfg. item #: VD
LARVD
FREE shipping when ordered with a machine from this manufacturer.20
$8.00

427
5J***
RUB COLLAR, 3.25 OD, **SPECIFY BORE**: (3/4, 1, OR 1-1/4)
Mfg. item #: 5J***
LAR5J***
FREE shipping when ordered with a machine from this manufacturer.20
$19.00

427
6J***
RUB COLLAR, 4 INCH OD, **SPECIFY BORE**: (3/4, 1, OR 1-1/4)
Mfg. item #: 6J***
LAR6J***
FREE shipping when ordered with a machine from this manufacturer.20
$23.00

427
RV
Mfg. item #: RV
LARRV
FREE shipping when ordered with a machine from this manufacturer.20
$47.00

427
AS100
Mfg. item #: AS100
LARAS100
FREE shipping when ordered with a machine from this manufacturer.20
$60.00

427
AS120
Mfg. item #: AS120
LARAS120
FREE shipping when ordered with a machine from this manufacturer.20
$60.00

427
AS150
Mfg. item #: AS150
LARAS150
FREE shipping when ordered with a machine from this manufacturer.20
$60.00

427
AS180
Mfg. item #: AS180
LARAS180
FREE shipping when ordered with a machine from this manufacturer.20
$60.00

427
AS240
P240 SHEET OF STRETCHABLE ABRASIVE
Mfg. item #: AS240
LARAS240
FREE shipping when ordered with a machine from this manufacturer.20
$65.00

427
AS80
P80 STRETCH ABRASIVE SHEET
Mfg. item #: AS80
LARAS80
FREE shipping when ordered with a machine from this manufacturer.20
$65.00

427
VS
Mfg. item #: VS
LARVS
FREE shipping when ordered with a machine from this manufacturer.20
$80.00

427
RP
Mfg. item #: RP
LARRP
FREE shipping when ordered with a machine from this manufacturer.20
$85.00

427
PSW1
Mfg. item #: PSW1
LARPSW1
FREE shipping when ordered with a machine from this manufacturer.20
$165.00

427
PSW2
Mfg. item #: PSW2
LARPSW2
FREE shipping when ordered with a machine from this manufacturer.20
$165.00

427
PSW3
Mfg. item #: PSW3
LARPSW3
FREE shipping when ordered with a machine from this manufacturer.20
$165.00

427
SW1
Mfg. item #: SW1
LARSW1
FREE shipping when ordered with a machine from this manufacturer.20
$165.00

427
SW2
Mfg. item #: SW2
LARSW2
FREE shipping when ordered with a machine from this manufacturer.20
$165.00

427
SW3
Mfg. item #: SW3
LARSW3
FREE shipping when ordered with a machine from this manufacturer.20
$165.00

427
390JIG
FEED THROUGH CENTERING JIG WITHOUT TEMPLATES
Mfg. item #: 390JIG
LAR390JIG
Call for freight quote on this item or we will confirm freight charges before shipping.1
$1,350.00

427
