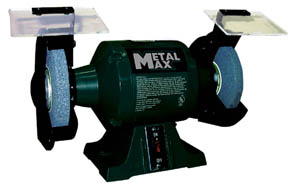

MMX 6 & 8 Bench Grinder

Standard Equipment

Bench Grinder
2 Grinding Wheels
2 Tool Rests
4 Large Washers
2 Mount Brackets & Hardware
2 Eye Shields
Owner's Manual

Specifications
Model	MM-6BG	MM-8BG
Stock Number:	100154	100155
Overall Dimension (LxHxD/in)	17 x 10-1/2 x 8	17-1/4 x 11-1/2 x 8
Wheel Size (Diameter x Width x Bore /in)	6 x 3/4 x 1/2	8 x 3/4 x 5/8
Wheels Included/Grit	36 & 60	36 & 60
Motor	1/3HP, 120V, 1Ph	1/2HP, 120V, 1Ph
Motor Stator Size (ODxIDxT/mm):	111 x 53 x 30	111 x 53 x 50
Capacitor Type	Running	Running
Motor (RPM)	3,450	3,450
AMPS	3.5	5
Motor Housing Material:	Cast Iron	Cast Iron
Bearing Hosing Material	Aluminum	Aluminum
Wheel Guard (Inner / Cover)	Sheet Metal	Sheet Metal
Tool Rest	Sheet Metal	Sheet Metal
Acrylic eye shields Size	L122 x W84 x T3.0/mm	L122 x W84 x T3.0/mm
Work Light:	Standard	Standard
Safety Approval	.CUL	UL
Packing (LxWxH/in)	19-1/8 x 9-3/4 x 9	23-1/8 x 10-7/8 x 10-3/8
Packing Volume (Cu Ft):	0.47	1.51
Net / Gross Weight (LBS)	22 / 24.2	37.4 / 38.5
Optional Pedestal Stand-Stock Number	100156	100156
