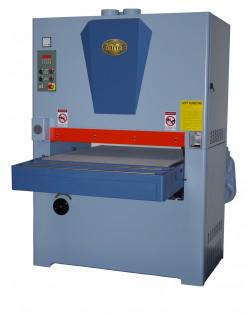

Oliver 25 Inch Wide Belt Sander

Features:

  • Digital Thickness Controller
  • Thickness Sensor
  • Variable Speed Feed
  • Fully Adjustable and Removable Platen
  • Heavy Ground Table Supported by Four Elevating Screws
  • Y-Delta Soft Start on Main Motor
  • Infeed Support Roller 2 PCS with Support Bracket
  • Pressure Shoe with Roller
Specifications
Model No. 5355
Stock No. (15HP, 3 Ph) 5355.003
Maximum Stock Width (in.) 25
Minimum Stock Thickness (in.) 1/8
Maximum Stock Thickness (in.) 5
Air Requirements (PSI) 80
Dust Port Diameter (in.) 5
Exhaust Volume Required (CFM) 800
Abrasive Belt Dimensions (W x L/in.) 25 x 75
Feed Speed (FPM) Variable, 16 - 49
Main Motor 15HP, 3 Ph, 220/440V,
Prewired 220V
Conveyor Motor 1HP, 1 Ph, 220V Only
1HP, 3 Ph, 220/440V
Prewired 220V
Table Height Adjust Motor 1HP, 1 Ph, 220V Only
1HP, 3 Ph, 220/440V
Prewired 220V
Gross Weight (lbs.) 1,985
WIDE BELT SANDERS
5355.002 25 inch Wide Belt Sander 15HP 3Ph –  Available 2013.

5355.002
DISCONTINUED - 18 CUTOFF SAW 10HP 3PH RH FEED (BLADE ON LEFT)
Mfg. item #: 5355.002
OLV5355.002
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
Call for Price
