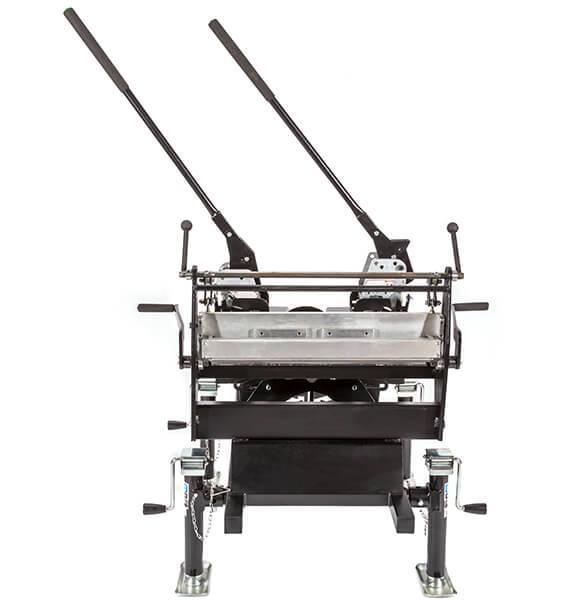

Swenson Eave Master

The Eave Master accommodates panels between 12 - 24 inch and is equipped to notch and hem eave cuts in seconds. The inch ruler on the notchers allows for an easy-to-measure hem line. The Eave Master provides a consistent notch and hem on straight runs and is perfect for use in any commercial job. It is lightweight and can be manually lifted by two people for easy transport.

Additional dies are available for purchase for each panel profile.

(This product does not do angle cuts)

Specifications
Panel Sizes: 12 inches - 24 inches
Weight: 150 lbs
Suggest Max Panel Thickness: 20 gauge
Hemming Capabilities: Up to 24 inches
Can Be Used With: Cor-Ten, Nail Strip, SnapLock, Mechanical Seam, Zip-Rib and many more options.



Models and Accessories
EVMSTR Eave Master - Notch and hem on straight runs
EVH-01 Eave and Valley Hemmer - Provides perfect lines on straight and valley cuts, hemming max of 60 inch
ANS Angle Notchers - Angle Notcher Set
CMSTR Cut Master - Notch and cut on straight runs
SNS Standard Notchers - Standard Notcher Set



EVMSTR
EAVE MASTER - NOTCH AND HEM ON STRAIGHT RUNS
Mfg. item #: EVMSTR
SWEEVMSTR
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
Call for Price

660
EVH-01
EAVE & VALLEY HEMMER - PROVIDES PERFECT LINES ON STRAIGHT & VALLEY CUTS, HEMMING MAX OF 60
Mfg. item #: EVH-01
SWEEVH-01
lease to own for as little as:$92 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$4,580.52

660
ANS
ANGLE NOTCHERS - ANGLE NOTCHER SET
Mfg. item #: ANS
SWEANS
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
Call for Price

660
CMSTR
CUT MASTER - NOTCH AND CUT ON STRAIGHT RUNS
Mfg. item #: CMSTR
SWECMSTR
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
Call for Price

660
SNS
STANDARD NOTCHERS - STANDARD NOTCHER SET
Mfg. item #: SNS
SWESNS
lease to own for as little as:$69 per month!
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.11
$3,429.00

660
