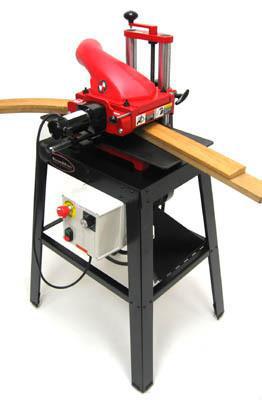

William & Hussey "NEW" 209 Molder

Applications

Our customers have revealed to us the machines range of versatility. From the trimming of a multimillion dollar home, to the making of game calls, to picture frames, to custom redwood planters. The variety of tasks it is capable of seems inexhaustible.

s-h alt

Package Includes:

  • Molder
  • Belt & Pulley
  • Stand
  • Dust Hood
  • 2 HP Motor
  • Magnetic Dropout
  • Switch w/Cords
  • Table Guides
Feed Type: 0-19 fpm, variable feed
Knife Motor: 1-1/2 inch HP (3480 rpm)
Voltage: 115V (20 amp required)
Phase: 1
Machine Base: Steel Construction with levelers
  28L x 22W x 33H inch
Guide System: 22L x 11-3/4W x 1/2H, HDPE inch
Package Weight: 217 lbs
Arbor RPM's 6960
Maximum Profile Depth 3/4 inch Minimum Stock Length 9 inch
Maximum Profile Width 6-3/4 inch Minimum Stock Thickness 1/4 inch
  Maximum Height Above Final Cut 3⁄16 inch
  Maximum Stock Thickness 8 inch
  Planes 7 inch Wide
Overall Machine Dimensions: 28L x 22W x 50H inch
Working Height: 35 inch



Applications

Our customers have revealed to us the machines range of versatility. From the trimming of a multimillion dollar home, to the making of game calls, to picture frames, to custom redwood planters. The variety of tasks it is capable of seems inexhaustible.

s-h alt

Warranty

The W&H has been a proven design since 1926. it will mold and plane with great precision. Your W&H is warranted for 7 years. in addition, as long as you own it, competent help with its care and operation is as close as your phone.

s-h alt

Williams & Hussey Model 206 Planer / Molder
209-1PH-K Model 209, Single Phase, 115V (variable feed; 0-19 fpm) 20 amp circuit required on Model 209
EJ-92-SPL Special - Elliptical Jig - ONLY when added to a W and H Molder at time of order.
MP-06-K Multi-Pass Kit
P-123-K Feed Roll Kit (2 yellow rolls, 4 axles, thread locker)
P-160-K Feed Roll Kit (1 yellow, 1 green roll, 4 axles, thread locker)
GS-2 Guide System, Textured (older style molder bases require retro kit)
GS-02 Hardware and instructions to drill holes in molder bed
54-400 Rockler Mobile Base
54-402 Stationery Machine Base
EJ-92 Elliptical Jig
VF-106-K Vari-Feed Retro with 240V, DC Control
VF-104-K Vari-Feed Retro with 240V, AC/DC Control
54-404 V-Belt, A, Powertwist, 45 inch (For new machine base)
54-406 V-Belt, A, Powertwist, 47 inch -  For machine bases prior to June, 2010



209-1PH-K
MODEL 209, SINGLE PHASE, 115V (VARIABLE FEED; 0-19 FPM) **20 AMP CIRCUIT REQUIRED ON MODEL 209
Mfg. item #: 209-1PH-K
WMS209-1PH-K
lease to own for as little as:$56 per month!
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.11
$2,778.20

1746
EJ-92-SPL
SPECIAL - ELLIPTICAL JIG - ONLY WHEN ADDED TO A W & H MOLDER AT TIME OF ORDER.
Mfg. item #: EJ-92-SPL
WMSEJ-92-SPL
FREE shipping when ordered with a machine from this manufacturer.20
$475.00

1746
MP-06-K
MULTI-PASS KIT
Mfg. item #: MP-06-K
WMSMP-06-K
FREE shipping when ordered with a machine from this manufacturer.20
$99.00

1746
P-123-K
FEED ROLL KIT (2 YELLOW ROLLS, 4 AXLES, THREAD LOCKER)
Mfg. item #: P-123-K
WMSP-123-K
FREE shipping when ordered with a machine from this manufacturer.20
$99.00

3
P-160-K
FEED ROLL KIT (1 YELLOW, 1 GREEN ROLL, 4 AXLES, THREAD LOCKER)
Mfg. item #: P-160-K
WMSP-160-K
FREE shipping when ordered with a machine from this manufacturer.20
$99.00

3
GS-2
GUIDE SYSTEM, TEXTURED **OLDER STYLE MOLDER BASES REQUIRE GS-02 HARDWARE KIT
Mfg. item #: GS-2
WMSGS-2
FREE shipping when ordered with a machine from this manufacturer.20
$99.00

1746
GS-02
HARDWARE AND INSTRUCTIONS TO DRILL HOLES IN MOLDER BED
Mfg. item #: GS-02
WMSGS-02
FREE shipping when ordered with a machine from this manufacturer.20
$10.00

3
54-400
ROCKLER MOBILE BASE
Mfg. item #: 54-400
WMS54-400
FREE shipping when ordered with a machine from this manufacturer.20
$185.00

3
54-402
STATIONERY MACHINE BASE
Mfg. item #: 54-402
WMS54-402
FREE shipping when ordered with a machine from this manufacturer.20
$325.00

3
EJ-92
ELLIPTICAL JIG
Mfg. item #: EJ-92
WMSEJ-92
FREE shipping when ordered with a machine from this manufacturer.20
$495.00

3
VF-106-K
VARI-FEED RETRO WITH 240V, DC CONTROL
Mfg. item #: VF-106-K
WMSVF-106-K
FREE shipping when ordered with a machine from this manufacturer.20
$579.00

1746
VF-104-K
VARI-FEED RETRO WITH 240V, AC/DC CONTROL
Mfg. item #: VF-104-K
WMSVF-104-K
FREE shipping when ordered with a machine from this manufacturer.20
$775.00

3
54-404
V-BELT, A, POWERTWIST, 45 (FOR NEW MACHINE BASE)
Mfg. item #: 54-404
WMS54-404
FREE shipping when ordered with a machine from this manufacturer.20
$35.00

3
54-406
V-BELT, A, POWERTWIST, 47
Mfg. item #: 54-406
WMS54-406
FREE shipping when ordered with a machine from this manufacturer.20
$36.00

3
