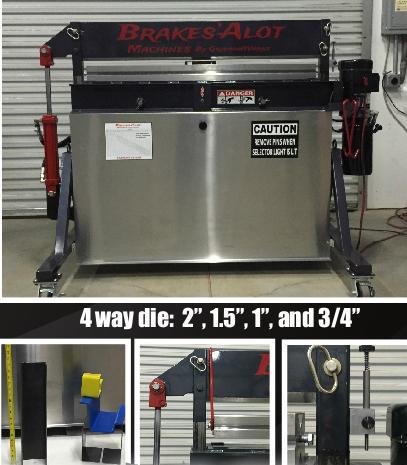

GrishamWorks BrakesALot 3000

BrakesAlot 3000 Metal Brake

  • 28 ton Hydraulic Brake
  • 110 Volt
  • 1/4 inch plate x 18 inch
  • 3/16 plate x 30 inch
  • 1/8 inch and under at 48 inch
  • Bends can be closed and removed by unpinning and raising the bar hydraulically
  • Electrically operated foot switch for precise control
  • Patent pending this is the only machine where you can bend over the bar to make a box
  • On casters so you can move it around your shop, verstile and convenient
  • Standard with limit switch and back gauge
Specifications
Width 48 inch
Speed 7 millimeters per sec
Window Height 8 3/8 inch with 4-way die place from bottom of punch ( Top Bar ) 10 inches over all without die in place
Bed Width 50.5 inch
Window Depth Unlimited
Ram Stroke 10 inch
Tooling Space 5 7/8 inch width by 50.5 inch in length
Back Gauge Adjustment 32
Shipping Weight 1,150 Ibs
Hydraulic Cylinders 3.5 inch Bore by 10 inch stroke



No listed accessories
