DAKE Benchtop Horizontal Mitering Bandsaws

Click here to download manual

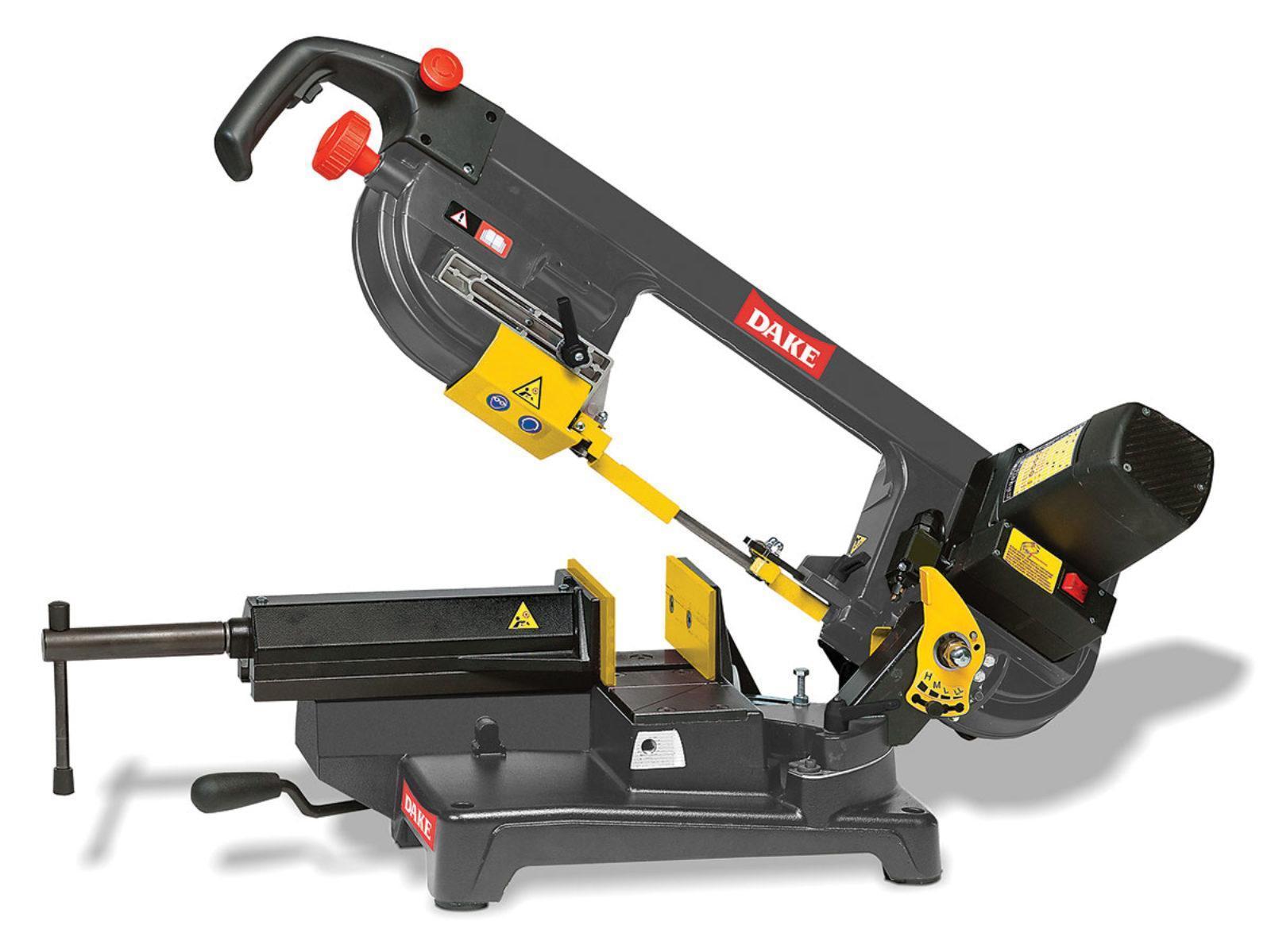

Benchtop Horizontal Mitering Bandsaws

This semi-automatic benchtop horizontal bandsaw is small in size but not in power. Featuring new reverse cutting technology for cooler cutting and faster, cleaner cuts. Designed for on-the-go applications this saw will cut all of the metal rounds, flats, and tubes you need right in the field. Offering 110V power, 2.5 HP motor with variable cutting speeds, 2 cutting modes, and mitering capabilities of 0 - 45 deg.

Warning: This product contains Nickel, a chemical known to the State of California to cause cancer. For more information go to

Features:

  • Gravity down feed for hands free cutting
  • Electronic speed regulator with Constant Speed feature prevents bog downs
  • End of cut shut off switch with trigger control, e-stop and blade cover interlock
  • Hefty 2.5 HP motor with direct drive.
  • RCT reverse cutting technology. Blade runs in reverse direction for cooler cutting, faster and cleaner cuts
  • Bi-Metal Blade
  • Blade tension indicator with clutch for proper blade tensioning every time
  • Push and click hands free cutting pressure setting
  • Variable Speeds with 114 - 262 feet per minute
  • Cast bed and cutting bow and outboard stop
  • Miter capabilities 0- 45 deg
  • Quick release vise for fast set up and change over
  • 2 cutting modes. Manual and gravity down feed
  • Cutting speeds and feed guide

Standard Equipment

  • Electronic blade speed regulator
  • End of cut shut off switch
  • Hefty 2.5 HP Motor
  • Bi-Metal Blade
  • Blade tension indicator
  • Cast bed and cutting bow
  • Quick release vise

Model Options

  • Blade reverse welded 6 TPI
  • Blade reverse welded 14 TPI
  • Blade reverse welded 10-14 vari tooth
  • Blade reverse welded 6-10 vari tooth
  • FST work table for the SE-5X6 RCT
Models and Accessories
983106-1 Bench top mitering bandsaw. 5 x 8 inch capacity 110 volt
983107-1 Bench top mitering bandsaw. 5 x 6 inch capacity Reverse Cutting Technology 110 volt
303301 Portable folding table for bench model bandsaws



Specifications
Model Number SE 5X6 RCT SE-5X8
Part Number 983107-1 983106-1
Capacity 5 x 6" Rectangle 5 x 8" Rectangle
Horsepower 2.5 2 HP
Voltage 110V 110V
Maximum blade speed 262 FPM 262 FPM
Blade width (in) 1/2 1/2
Blade length (in) 68 1/4 68 1/4
Blade speed 114 - 262 FPM 196 - 262 FPM
Round 0 deg capacity (in) 6 6
Round 45 deg capacity (in) 4 4
Square 0 deg capacity (in) 6 6
Square 45 deg capacity (in) 4 4
Rectangle 0 deg  capacity (in) 6 x 5 8 x 5
Rectangle 45 deg capacity (in) 4 3/4 x 4 4 x 3 3/4
Base width (in) 18 18
Height (in) 20 17
Floor space (in) 18 x 39 18 x 39



No accessories listed

983106-1
BENCH TOP MITERING BANDSAW. 5 X 8 CAPACITY 110 VOLT
Mfg. item #: 983106-1
DAKE983106-1
Call for freight quote on this item or we will confirm freight charges before shipping.1
NEW ITEM
Call for Price

16
983107-1
BENCH TOP MITERING BANDSAW. 5 X 6 CAPACITY REVERSE CUTTING TECHNOLOGY 110 VOLT
Mfg. item #: 983107-1
DAKE983107-1
Call for freight quote on this item or we will confirm freight charges before shipping.1
NEW ITEM
Call for Price

16
303301
PORTABLE FOLDING TABLE FOR BENCH MODEL BANDSAWS
Mfg. item #: 303301
DAKE303301
Call for freight quote on this item or we will confirm freight charges before shipping.1
NEW ITEM
Call for Price

16
