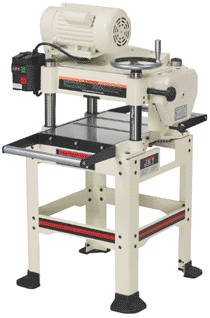

JET JWP-160S 16" Planer


The JWP-16OS planer quickly and quietly transforms rough lumber into smooth boards, with a full 16” planing width. Its heavy-duty cast iron and steel construction keeps the workpiece steady and supported, while the conveniently located two-speed gear box allows for quick and easy feed rate adjustments. This machine means business with a powerful 3 HP induction motor. A large cast-iron table with smooth-as-glass surface makes this planer a beautiful addition to the shop. And since planers kick up a lot of dust, we made dust collection easy with an exclusive angled 4" dust port to keep your hose out of the way.

Standard Equipment

  • Magnetic controls

  • Set of three HSS knives

  • 4" dust port

  • Extension rollers

  • Open stand with casting pads

  • Knife setting gauge

  • Cutter head with three high-speed steel knives locks firmly in place to prevent movement while in use
  • Heavy-duty cast iron and steel construction for added strength and durability
  • Two-speed gear box with automatic chain tensioner lets you adjust the feed rate to meet your needs
  • Large, cast iron, precision ground table for precise workpiece support
  • Powerful 3 HP TEFC induction motor with three V-belt transmission for smooth and consistent power
  • Surge infeed and outfeed rollers give your workpiece maximum support during planing operations
  • Two-speed gear box lets you adjust the feed rate to meet your needs
  • Work table is precision-ground and polished for consistently smooth operation
  • Large handwheel with positive gear drive allows for quick and accurately table adjustments
  • Exclusive angled 4" dust port keeps your dust hose out of the way
  • Heavy-duty steel wide base open stand with casting pads provides support and stability of the tool during use
  • Magnetic controls provide long life and reliability
Part Number 708531
Maximum Planing 16 "
Maximum Planing Thickness 6 "
Maximum Full Width Depth of Cut 1/8 "
Maximum Depth of Cut 3/16 "
Minimum Planing Length 8 "
Cutterhead Diameter 2 7/8 "
Cutterhead Speed 4500 RPM
Cuts Per Minute 13500
Feed Rate 16 and 20 FPM
Number of Knives 3
Dust Port Diameter 4 "
Dust Collection Minimum CFM Required 400 cu.ft/min
Blade Size 16 1/8" x 1" x 1/8"
Amps 15 A
Motor Power 3 HP
Motor Phase 1 Ph
Motor Voltage 230 V
Family Description 16" PLANER
Model Number JWP-16OS
Brand Jet
Overall Dimensions 48 x 32 x 51
Height 30 inch
Width 22 inch
Length 32 inch
Net Weight 531 pound

JWP-160S 16" Planer

  • Powerful 3 HP TEFC motor with magnetic switch

  • Three V-belts transfer maximum power to the cutterhead

  • Cast iron and steel construction for stability and durability

  • Large cast iron handwheel moves the head quickly and easily

  • Surge infeed and outfeed rollers provide maximum workpiece support while planing

  • Serrated steel infeed roller and smooth steel outfeed roller

  • Two speed gearbox feature an automatic chain feed tensioner

  • Angled 4" dust port positions the hose away from work area and provides efficient chip and dust collection

  • Head locks firmly in place to prevent movement use


WMH Tool Group, Inc., warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these WMH Tool Group Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your Jet® tools. For the name of an Authorized Service Center in your area call 1-800-274-6848.



JET® PLANERS and Accessories
708531 JWP-16OS, 16" Planer, 3HP 1PH 230V, Open Stand
708814 Knives for 16" Planer (set of 3)
708118  Universal Mobile Base
709209 13" Roller Stand
