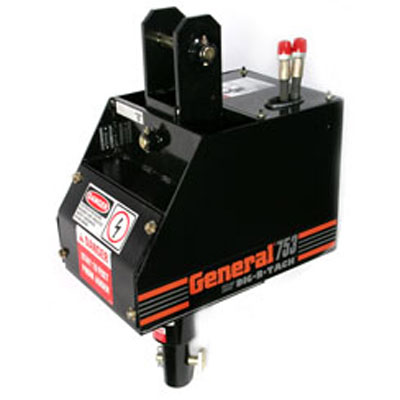

General Equipment M753-24 DIG-R-TACH®

The M671-24 and M753-24 are used most often with tractor loader backhoes. Single speed roller chain reduction, high torque geroler type hydraulic motor with integral dual cross over relief valve to minimize internal damage from excessive pressure spikes. Stub length connecting hoses. Less hydraulic quick couplers, hose kit, auger and mounting bracket/frame to power source

Auger

• Drive shaft Connection: 2-9/16 inch (mm) round
• Diameter: 6" (mm) to 36" (mm)
• Extension: Flighted and Non-flighted plain tube, depth to 45" (1143mm)
• Maximum Drilling Torque: 2018 ft. lbs

Hydraulic System

• Configuration: Open Type
• System Flow: 15-25 GPM (57-95 lit/min) at 1500 -3000 PSI
