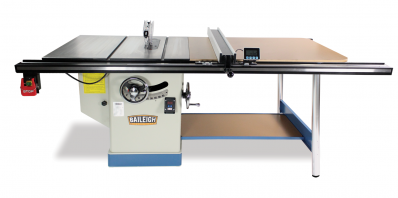

When looking for a truly professional cabinet table saw, good capacity and power are a must. The TS-1248P is a 12 inch diameter blade table saw that is available in two different sizes. The TS-1248P-36 has a 36 inch right side rip capacity, while the TS-1248P-52 has an extension for 52 inch right side rip capacity. Both run on 220 volt single phase 5hp motor that produces 3600 rpm. Because of the extra power the TS-1248P has a 1 inch arbor that tilts 45 degrees to the left. To make operation even easier the bevel has a digital readout for increased accuracy.
Another unique feature of the TS-1248P series is the rip fence that incorporates a digital readout for rip capacity. Just zero the DRO at the blade and away you go. No second guessing the length of cut. The table and extensions for the TS-1248P are made from precision ground cast iron. These tables are placed upon a super rigid all steel base for accurate alignment. The Other standard features to the TS-1248P series are; miter gauge, standard and dado inserts, deluxe rip fence and 4 inch dust collection port. For more information contact a representative today.
|Dust Collection Port||4 inch||4 inch|
|Number of Outlets||1||1|
|Table Size (Length)||24.4 inch||24.4 inch|
|Table Size (Width)||30.7 inch||30.7 inch|
|Table Saw Working Table||48.4 x 30.7 inch||64.4 x 30.7 inch|
|Table Saw Blade Diameter||12 inch||12 inch|
|Table Saw RPM||3600||3600|
|Table Saw Arbor||1 inch||1 inch|
|Table Saw Cutting Height at 90 degree||4 inch||4 inch|
|Table Saw Cutting Height at 45 degree||2-3/4 inch||2-3/4 inch|
|Maximum Dado Diameter||8 inch||8 inch|
|Maximum Dado Width||13/16 inch||13/16 inch|
|Maximum Rip Cut (Right)||36 inch||52 inch|
|Power||220V Single Phase||220V Single Phase|
|Length||49 inch||49 inch|
|Width||32 inch||32 inch|
|Height||37 inch||37 inch|
We now ship our table saw rails on a 98x36 inch pallet to prevent freight damage and lost rails
60x44x53 inch (690lbs 1 crate, 1 box) and 98x36x13 inch (200lbs 1 crate, 1 box)
specifications subject to change without notice.
COMPARE PERFORMANCE and PRICE WITH ANY FENCE!
Being able to cut materials safely and precisely on your table saw is essential for fast and accurate Woodworking. Unless saw fences are well designed they make cutting a chore instead of pleasure, resulting in poor quality and inaccu- rate cuts. Most Saw Fence Systems….
The Vega Saw Fence Systems solve all of these problems (and more!) to assure Accurate and reliable cuts combined with smooth, precise motion.
The Professional Model features the ruggedness and durability for Commercial production requirement, yet is extremely refined for the serious woodworkers needs and wants. With larger components and greater rigidity, the Professional Model is designed for 10 - 12 inch Saws cutting heavier materials and commercial use. The Vega retrofit Saw Fence System is available with 26, 40 or 50 inch rip capacity to the right of the blade and 10″ to the left, with a standard fence length of 42 inch on models PRO 26, PRO 40, and PRO 50. For saw tables between 34 and 42 inches deep, the PRO 26L, PRO 40L, AND PRO 50L ARE available featuring a 50 inch fence bar.
Designed for contractors saws, smaller cabinet saws, and 10 inch saws that don’t receive extremely heavy use, the Utility Model Fence is simply a small version of the very successful Professional Model. With all the great features of the Pro Model (fast installation, super precision, micro adjustments and more), the Util- ity Fence will upgrade your saw to a very precise cutting machine at a very rea- sonable price.
The Utility Model Vega Saw Fence System is available with 26 or 50 inch rip capacity to the right of the blade and 8 inch to the left.
Vega manufactures a number of great accessories for the Professional and Util- ity Model fences making them more convenient, productive and safer to use. All accessories are available for both models except the Leg Set which is not necessary for the Utility 26.
You compare the features!
No other Fence can be installed on your saw as easily as The Vega Saw Fence, according to American Woodworker Magazine (Oct.92) “I found the Vega Model 50 the easiest to install of all the fences.”
Vega Saw Fences are designed to use existing bolt holes (no drilling required) of Delta Unisaws and Contractors Saws, Powermatic Model 66, most Sears 10 inch saws and most other saws having fence rail mounting holes 8 -9 inch on either side of the blade. Other saws may require drilling 2 or 4 holes. Little accuracy is needed as the Fence Mounting System allows full adjustment. (Installation may be as little as 15 minutes.) Features which help make this Fence so easy to install include:
Extruded from 6005 - T6 high strength aluminum, the Vega fence head closely contours the polished chrome front rail providing excellent fit and nearly eliminating side play in the fence during adjustment. In ad- dition, the combination of the polished chrome tube and the aluminum head produces an almost ideal bearing surface for low friction and long life. The fence head simply lifts off the front rail for quick fence removal and installation.
The Vega Saw Fences are the only Fences with true Micro Adjustment capability. If you require precise adjustment from your tablesaw, this is a necessary feature. The Micro Adjustment allows you to move the Fence very precisely in either direction, via a threaded rod thumb nut combination. For the final adjustment of only a few thousandths of an inch, Vega provides a threaded mechanism for final, precise setting.
To operate the Micro Adjust:
… and hoping for the best! With other saw fences precise adjustments is achieved using this technique.
Vega has carefully chosen only the highest quality materials to construct their Saw Fences. Three unique precision aluminum extrusions, the highest grade of plating quality tubing and super tough and attractive epoxy coating, combined with meticulous care in fabrication result in a truly superior product.
A. Front Guide Rails
The Front Fence Rail is a precision rolled, plating quality tube with a very thick wall for extreme stiffness. The bar is tapped for attachment of the front mounting brackets, table extension plates, and the Vega leg kit (optional). It is chrome plated and plated and polished to provide an extremely low friction glide path for smooth and easy adjustment of the fence.
B. Rear Guide Rails
The Rear Fence Rail is a 1-1/2 inch square tube predrilled for mounting to the exist- ing holes (in most saws) and tapped to hold the extension table support plates and Vega leg kit (optional). The Rail is epoxy coated for low friction, high durability, and an attractive finish.
C. The Fence Bar
The Vega Fence Bars are aircraft quality aluminum alloy extrusions shaped for extreme stiffness while being relatively lightweight for easy handling. They are very accurate bars with side flatness held to extremely close tolerances, resulting in a very uniform surface to guide material through the saw blade for precision cuts. The Fence Bars have a Black Anodized finish which provides extreme surface hardness and low friction.
D. Mounting Brackets
These extruded aluminum mounts help to make the Vega Saw Fence the easiest and fastest aftermarket saw fence to install. They provide simple and accurate vertical and horizontal adjustment for the front guide rail and simply bolt to the saw table through existing holes (in most saws).
E. Jacking Plates
To further assist in easy and accurate installation, jacking plates (4) are provided at the mounting points of the front and rear rail to make leveling and setting fence clearance easy.
F. Rear Hold Down Bracket
The rear hold down bracket prevents the rear of the fence from raising if the fence issued in conjunction with stock feed systems. It is adjusted to just clear the lower side of the rear guide rail.
Support Plates For Extension Tables
(All Models except Pro 26 and Utility 26) To extend the work surface of your saw, Vega provides four Table Support Plates. These Plates are bolted to the underside of the Front and Rear Fence Rails to support an extension table which can easily construct. In addition, the extension table will strengthen the Saw Fence System.
|Model||Rip Capacity Right||Rip Capacity Left||Fence Bar Length||Front Rail Dia.|
|Vega Utility 26||26||8||36 inch||1-3/4 inch|
|Vega Utility 50||50||8||36 inch||1-3/4 inch|
|Vega Pro 40||40||10||42 inch||2 inch|
|Vega Pro 50||50||10||42 inch||2 inch|
|Vega Pro 40L||40||10||50 inch||2 inch|
|Vega Pro 50L||50||10||50 inch||2 inch|
|72024||Utility Saw Fence 26 inch Rip Capacity 36 inch Fence Bar Still MADE in the USA|
|72025||Utility Saw Fence 50 inch Rip Capacity 36 inch Fence Bar Still MADE in the USA|
|72578||Pro 40 inch Rip Capacity 42 inch Fence Bar Still MADE in the USA|
|72580||Pro 50 inch Rip Capacity 42 inch Fence Bar Still MADE in the USA|
Finally, a sharpener for every home shop that will make your cutting job more efficient and easier at anytime and anywhere. All you need is the 0812 Circular
|Oliver cicular saw blade sharpener|
|812||Circular Saw Blade Sharpener|
